MAIN CHARACTERISTICS:

Continuous Warm Water
Instant ceramic heating technology ensures the water never runs cold and prevents limescale buildup

Electronic Bidet Seat
Toilet Seat is electric and plugs into a regular 220-240V 50-60hz outlet.

Side Control Panel
Control panel is attached to the side of the bidet seat.

Single Multi-Function Nozzle
A sleek, singular wand design that adjusts position to handle multiple washing functions effectively.

Wireless Remote Control
Wireless Remote control with a wall-mountable holder for your convenience. Attach and detach with ease.
Details

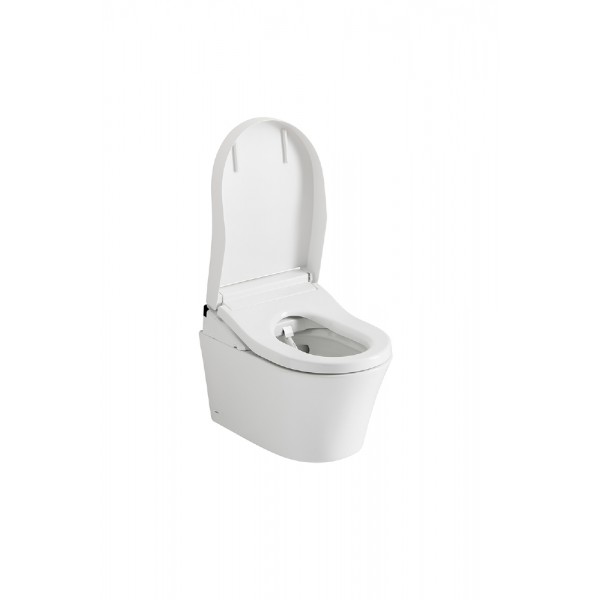

TOTO WASHLET® RG Lite with Hidden Connections
A beautifully integrated finish, with warm-water washing and heated-seat comfort at your fingertips.
Electric bidet seat and lid. Matching WC ceramic, flushing system and installation-specific connection parts are purchased separately.
The TOTO WASHLET® RG Lite with Hidden Connections (TCF34120GGB) is an electric bidet toilet seat with adjustable front and rear warm-water washing, a heated seat, EWATER+ automatic wand cleaning and an included wireless remote. Paired with a compatible WASHLET-ready TOTO ceramic, it conceals the water hose and electrical connection within the installation for a clean, coordinated appearance.
It is an appealing choice for a new bathroom or a carefully planned refurbishment: the comfort of a Japanese shower toilet, with the services kept out of sight. Select a GP wall-hung installation for an uncluttered floor area, or a matching RP close-coupled combination for a floor-standing solution with the cistern above the pan.
Whichever arrangement suits your room, the daily experience remains personal: choose your wash, adjust the warmth and pressure, and enjoy a gentle, refreshing clean.
The details you enjoy. The connections you do not see.
The RG Lite combines a softly rounded white profile with a connection layout designed to sit discreetly within the matching WC. Water and electrical services reach the WASHLET through the ceramic’s prepared openings, preserving the finished bathroom’s clean lines.
- A coordinated appearance: choose the ceramic arrangement that suits your room and installation style.
- Less exposed service clutter: the hose and connection are kept out of view when correctly installed.
- Comfort within reach: the wireless remote brings the wash controls beside you.
Hidden connections, planned as part of the bathroom
The integrated finish comes from choosing the WASHLET, ceramic and connection arrangement together.
Purpose-designed ceramic
The matching pan provides the openings and internal route needed for the concealed services. The exact ceramic reference matters: a standard pan with a similar outline does not automatically offer the same connection arrangement.
Services prepared before fitting
Your installer positions the cold-water and electrical connections to align with the ceramic and WASHLET. For a new bathroom, this is best agreed before boxing in, tiling or completing the finished wall.
Access considered from the start
A discreet finish should still allow sensible access for isolation, maintenance and servicing. Plan the correct connection parts and follow the installation procedure for the chosen pan and flushing system.
A personal wash, with the adjustments that matter
The concealed installation changes the appearance of the bathroom. TOTO’s adjustable cleansing system changes how comfortable your daily routine can feel.
Rear, soft rear and front cleansing
Choose from three cleansing sprays. Rear cleansing provides a directed posterior wash; soft rear cleansing offers a milder alternative; front cleansing is positioned for front intimate washing. Begin with a gentle setting and adjust to your preference.
Oscillating and pulsating wash functions
Oscillation moves the wand backwards and forwards to wash across a wider area. Pulsation, also described as the massage function, alternates the water pressure between softer and stronger pulses. These options complement the three main spray choices.
Warm water, heated as it flows
The continuous-flow heater warms the incoming cold water during cleansing. Select one of three temperature levels within an approximate 35–40°C range, or switch water heating off. There is no separate hot-water supply to run from a boiler or cylinder.
A heated seat for everyday comfort
Choose from three seat-temperature levels, approximately 28–36°C, or turn seat heating off. The soft-closing seat and lid lower gently after use, adding a quiet finishing touch to a bedroom en-suite or family bathroom.
Five pressure levels and five wand positions
Adjust the strength and direction of the wash from the remote. Five water-pressure levels and five wand positions let you fine-tune the spray while seated, helping different users find a comfortable setting.
Two memories for familiar wash settings
Save two sets of wand position, water pressure and warm-water temperature preferences. Recall the preset you want, then choose your cleansing function. Seat temperature is adjusted separately, so it can be set to suit the household and the season.
Simple controls, comfortably to hand
Make a comfortable routine your own
- Sit down and select your wash. Choose rear, soft rear or front cleansing. The built-in seat switch detects when the seat is occupied.
- Fine-tune the experience. Adjust pressure and position, add oscillation or pulsation, or recall your saved wash settings.
- Stop, then pat dry. Press Stop when finished. This model has no warm-air dryer, so use a little toilet paper or a suitable personal towel to dry gently.
The remote holder can be positioned within convenient reach beside the WC. Temperature and energy-saving settings are available on the rear of the remote.
EWATER+ wand cleaning: hygiene built into the routine
The cleansing wand is protected between uses, cleaned automatically after washing and accessible for routine care.
Electrolysed water for the cleansing wand
TOTO generates EWATER+ by electrolysing tap water. After a cleansing function has been used, the RG Lite automatically cleans its wand with EWATER+. The remote’s Wand CLEAN control also lets you activate this cleaning function on demand.
EWATER+ is used for wand hygiene; your personal wash uses the adjustable warm-water spray. The electrolysed water returns to ordinary water over time.
Protected storage and practical cleaning access
When not in use, the wand retracts behind a protective flap above the ceramic bowl. A separate cleaning position lets you extend it for gentle manual wiping, and the spray nozzle can be removed for maintenance as described in the manual.
Automatic cleaning supports regular care. It does not remove the need to clean the seat, care for the ceramic or descale the water system.
Choose the correct hidden-connection combination
TOTO lists two ceramic arrangements for this WASHLET: GP wall-hung and RP close-coupled. The pan and connection parts differ, so choose the arrangement before ordering.
RG Lite with the WASHLET-ready GP WC
- WASHLET: TCF34120GGB.
- Compatible ceramic: TOTO GP wall-hung, WASHLET-ready CW553EY.
- Water connection: the SP10695UN hidden-connection set or SP515011B 3/8-inch mini ball valve, as appropriate to the planned installation.
- Flushing system: a suitable concealed frame, cistern and flush plate, selected separately.
The required water-connection arrangement depends on the frame and prepared services. Confirm the parts for your installation rather than assuming that both listed accessories are always required.
RG Lite with the matching RP WC and cistern
- WASHLET: TCF34120GGB.
- Compatible ceramic: TOTO RP close-coupled, WASHLET-ready CW561Y#XW.
- Matching ceramic cistern: TOTO RP SW561DY#W.
- WASHLET connection set: TCA567, specifically for RG / RG Lite hidden connections on the RP close-coupled WC.
A close-coupled arrangement uses the cistern above the pan and does not require a wall-hung support frame. Ask us to confirm any additional cistern fittings for the complete order.
For a seat-and-pan option, see the RG Lite with GP wall-hung WC or the RG Lite with RP close-coupled WC. Check the chosen configuration for the components included.
Hidden or side connections: which should you choose?
| Planning point | This RG Lite: hidden connections | RG Lite with side connections |
|---|---|---|
| Finished appearance | Services are concealed through the matching ceramic when correctly installed. | Hose and power cable are routed externally from the side of the seat. |
| A good starting point for | A new bathroom or refurbishment where the pan and services can be planned together. | Upgrading a listed existing TOTO pan where an external service route is appropriate. |
| Ceramic selection | The specified WASHLET-ready pan and its matching connection arrangement. | A pan listed as compatible with the side-connection model. |
| Washing and comfort | RG Lite warm-water washing, heated seat, EWATER+ wand cleaning and remote control. | The same core RG Lite cleansing and comfort features, with a different installation layout. |
Considering a retrofit? Compare the TOTO RG Lite with side connections, or ask us to identify the most suitable arrangement for your existing WC.
Installation planning: agree the services before first fix
The hidden-connection finish depends on preparation. Give your installer the WASHLET model, ceramic reference and connection drawings before completing the wall or fitting the pan.
1. Confirm the complete combination
Agree the pan, flushing system and connection parts together. For a wall-hung installation, check the frame and concealed cistern arrangement. For the RP close-coupled installation, use the matching cistern and TCA567 WASHLET connection set.
2. Position the cold-water connection
The WASHLET uses potable cold water, heated internally for washing. TOTO specifies a minimum 1.0 bar dynamic pressure and maximum 10.0 bar static pressure. Prepare the connection and isolation valve in the area shown on the relevant installation drawing.
3. Prepare the electrical connection
The operating manual specifies 220–240 V AC, 50 Hz. The hidden-connection installation uses the connector arrangement shown in TOTO’s guide. Have a qualified electrician plan the supply, earthing, RCD protection and isolation for the exact product and bathroom layout.
4. Route, fit and commission carefully
Water and electrical services pass through the ceramic’s prepared openings. Follow the installation sequence, avoid pinching the cable or sharply bending the hose, and complete the manufacturer’s leak checks and operational trial before handing over the bathroom.
Designed for comfortable ownership
Descaling with a controlled programme
The RG Lite has a built-in descaling programme. You initiate the process and add the recommended diluted descaler; the programme then controls the cleaning sequence. It does not automatically dose itself. Follow TOTO’s instructions and adjust the maintenance routine to local water conditions.
Practical manual maintenance
The removable spray nozzle and wand-cleaning position give access for routine care. Use a soft damp cloth on the seat and housing, clean the inlet filter as instructed and avoid abrasive pads or unsuitable chemicals. Keep electrical connections dry during cleaning.
Energy-saving settings for your routine
Auto Energy Saver and Auto Energy Saver+ adjust seat heating around periods of reduced use. Timer Energy Saver lets you set a heating-off period. These settings help you manage seat heating around your household schedule.
A useful reduction in everyday wiping
Washing with warm water can reduce the amount of wiping you need. Because the RG Lite has no warm-air dryer, keep a little toilet paper or a suitable personal towel for patting dry. Paper use and running costs depend on individual habits and settings.
What is included, and what to select separately?
The WASHLET seat package
- RG Lite TCF34120GGB electric washing seat, lid and integrated cleansing equipment.
- Wireless remote control, holder, batteries and the remote mounting items shown in the installation guide.
- Supplied seat-mounting and connection components shown in the model’s installation documentation.
- Instructions for installation, operation and maintenance.
Complete the installation separately
- Compatible WASHLET-ready ceramic pan.
- Appropriate flushing system: the concealed frame/cistern and flush plate, or the matching RP ceramic cistern.
- Installation-specific water-connection parts, including TCA567 for the RP close-coupled arrangement.
- Prepared water and electrical services, together with fitting and commissioning.
The WC pan, flushing system and pan-specific installation accessories are not included in this seat-only listing unless expressly selected as part of a separate combination.
TOTO RG Lite TCF34120GGB: technical specifications
| Manufacturer / range | TOTO / WASHLET® RG Lite |
|---|---|
| Product code | TCF34120GGB — hidden-connection version |
| EAN / GTIN-13 | 4050663096076 |
| Product type | Electric bidet toilet seat with lid and wireless remote control |
| Dimensions, W × D × H | 383 × 540 × 130 mm — WASHLET unit only |
| Weight | Approximately 5 kg |
| Colour / material | White / glass-fibre-reinforced polypropylene |
| Connection arrangement | Water and electrical services concealed through a compatible WASHLET-ready ceramic |
| Cleansing sprays | Rear, soft rear and front cleansing |
| Additional wash functions | Oscillating and pulsating / massage cleansing |
| Pressure / wand position | 5 pressure levels / 5 wand positions |
| Water heating | Instantaneous, continuous-flow heater; cold-water supply only |
| Wash-water temperature | Three levels, approximately 35–40°C, plus heating off |
| Seat temperature | Three levels, approximately 28–36°C, plus heating off |
| User memories | 2 presets for wand position, water pressure and warm-water temperature |
| Wand hygiene | Automatic EWATER+ wand cleaning after cleansing; on-demand Wand CLEAN control |
| Maintenance | Built-in descaling programme, wand-cleaning position and removable spray nozzle |
| Seat and lid | Manual opening with soft-closing operation |
| Energy-saving settings | Auto Energy Saver, Auto Energy Saver+ and Timer Energy Saver |
| Electrical supply | 220–240 V AC, 50 Hz, as specified in the operating manual |
| Water-supply pressure | Minimum 0.1 MPa / 1.0 bar dynamic; maximum 1.0 MPa / 10.0 bar static |
| Incoming water temperature | 0–35°C; protect the installation from freezing |
| Water protection / backflow devices | IPX4 / air gap according to EN 1717 and vacuum breaker, as specified by TOTO |
| Listed GP wall-hung combination | CW553EY, with the appropriate water-connection arrangement and separate flushing system |
| Listed RP close-coupled combination | CW561Y#XW + SW561DY#W + TCA567 |
| Features outside the RG Lite specification | No warm-air dryer, deodoriser, PREMIST, automatic seat/lid opening or automatic flushing |
Temperature figures are approximate. Seat-unit dimensions do not represent the overall height or projection of a complete WC installation. Confirm ceramic dimensions separately when planning your room.
RG Lite with hidden connections: questions answered
Useful answers on choosing the ceramic, preparing the services and using the WASHLET every day.
Is this a complete toilet or an electric bidet seat?
The TCF34120GGB is an electric bidet seat with a lid, integrated washing equipment and remote control. It needs a compatible TOTO ceramic pan and the appropriate flushing and connection arrangement. Choose a separate combination listing if you want to order the seat and ceramic together.
What does “hidden connections” mean?
The water and electrical services are routed through prepared openings in the matching ceramic, so they are concealed in the finished installation. This requires the correct pan and service positions. The effect is achieved by the complete installation rather than by covering an exposed hose on an ordinary WC.
Which ceramic pans can I use?
TOTO’s product specification lists the WASHLET-ready GP wall-hung CW553EY and the RP close-coupled CW561Y#XW. The RP combination also uses cistern SW561DY#W and connection set TCA567. If your pan carries a different reference, ask us to check it individually.
Can I fit it to a standard GP WC or another existing toilet?
Do not assume compatibility from the pan’s shape or range name. The hidden-connection arrangement needs the specified ceramic openings and service route. Send the exact pan code and photographs for a fit check. A side-connection RG Lite may offer another route for selected existing TOTO WCs.
Do I need SP10695UN, SP515011B or TCA567?
The parts depend on the installation. For the GP wall-hung arrangement, the hidden-connection set SP10695UN or the SP515011B 3/8-inch mini ball valve may be appropriate, depending on the prepared services. The RP close-coupled arrangement uses the specific TCA567 set. Confirm the complete parts list with the chosen ceramic and flushing system.
Does the hidden model wash differently from the side-connection RG Lite?
The core RG Lite washing and comfort features are the same: adjustable warm-water cleansing, a heated seat, EWATER+ wand cleaning and a remote control. Choose the connection version to suit the pan, available services and appearance you want.
Does it need a hot-water supply?
No. The WASHLET connects to potable cold water and heats it internally during cleansing. Water temperature and seat temperature can be adjusted separately, and either heating function can be turned off.
Does the continuous-flow heater provide an unlimited wash?
The heater warms water as it flows, so washing does not rely on the stored volume of a small preheated tank. Individual wash cycles still have operating limits: the manual specifies an automatic stop after approximately five minutes of continuous cleansing. You can press Stop whenever you finish.
Does the RG Lite have a dryer, deodoriser or PREMIST?
No. This model focuses on warm-water washing, heated-seat comfort and EWATER+ wand cleaning. It has no warm-air dryer, deodoriser or PREMIST bowl-misting function. Gently pat dry after washing using a little toilet paper or a suitable personal towel.
Does it open the lid or flush automatically?
No. Open the seat and lid manually; the soft-closing mechanism lowers them gently. Flushing is controlled by the separate WC cistern or flush plate. Hidden connections describe the service layout, rather than automatic opening or flushing functions.
Which preferences can the two user memories save?
Each preset saves wand position, water pressure and warm-water temperature. Recall a preset, then select your cleansing function. Seat temperature remains a separate adjustment and is not stored as part of those three wash settings.
Is it suitable for a hard-water area?
The built-in descaling programme and removable spray nozzle provide a maintenance route for scale management. Use the agent, dilution and procedure specified by TOTO, and maintain the inlet filter as instructed. Local water conditions determine how frequently care is needed; an ordinary inlet filter does not soften water.
What happens during a power cut?
Washing and heating require mains electricity and will be unavailable. The WC’s separate flushing system is unaffected by the WASHLET itself: a conventional manual cistern can still flush while its water supply is available.
Can it make personal washing easier for someone with limited movement?
The remotely controlled spray may make some parts of personal hygiene easier by reducing repeated wiping. Consider the individual’s reach, balance, transfers, seat height and ability to pat dry. The final pan height and remote position should be planned around the user, with assistance for controls or heat settings where needed.
Can hidden connections be added after the bathroom is finished?
Sometimes, if the correct WASHLET-ready pan and suitable service positions are already in place. Otherwise, changing the ceramic or accessing the wall may be necessary. Have the existing arrangement checked before ordering; a hidden-connection seat alone cannot create missing service routes.
Plan a cleaner-looking bathroom around everyday comfort
The RG Lite with hidden connections brings together adjustable warm-water washing, a heated seat, EWATER+ wand cleaning and discreet installation. Choose the matching ceramic and connection parts to enjoy the complete result.
Send Tooaleta your preferred GP or RP arrangement, the ceramic reference and details of your frame or cistern. We can help check the combination and identify the parts needed before you order.
Ask us to check your combinationAdditional Information
| Size | 516mm - 530mm |
|---|---|
| Weight | 7 |
| Delivery time: | 4-7 days |
| Specifications: |
|
Product Attachments
| Name | Description | Typ | Size | Download Link |
|---|---|---|---|---|
| TOTO Washlet Brochure | TOTO WASHLET® | NEOREST® Catalogue 2026 | 12.31 MB | TOTO Washlet Brochure | |
| TOTO Washlet RG User Manual | Instruction manual | 1.63 MB | TOTO Washlet RG User Manual | |
| TOTO Washlet RG Installation guide | Installation instructions | 4.57 MB | TOTO Washlet RG Installation guide |
-
