MAIN CHARACTERISTICS:

Built-in Nano-Silver Filter
Built-in Ag (Silver) filtration sterilises the water supply, ensuring every wash is anti-bacterial and pure.

Continuous Warm Water
Instant ceramic heating technology ensures the water never runs cold and prevents limescale buildup

Electronic Bidet Seat
Toilet Seat is electric and plugs into a regular 220-240V 50-60hz outlet.

Single Multi-Function Nozzle
A sleek, singular wand design that adjusts position to handle multiple washing functions effectively.

Warm Air Dryer
A gentle, soothing flow of warm air that reduces moisture and the need for toilet paper. Features adjustable temperature settings for a comfortable, hands-free finish.

Wireless Remote Control
Wireless Remote control with a wall-mountable holder for your convenience. Attach and detach with ease.
Details
TOTO WASHLET® SW EWATER+ with Silver Trim
A slim shower-toilet seat with personal warm-water washing, an automatic lid and concealed connections, designed for the matching TOTO SP wall-hung WC.
The TOTO WASHLET® SW is an electric bidet toilet seat combining adjustable warm-water washing, a heated seat, warm-air drying and sensor-operated lid opening and closing. Its EWATER+ technology cleans the wand and mists the bowl after use, while PREMIST prepares the ceramic beforehand. Automatic odour absorption adds another discreet convenience.
Created to coordinate with the TOTO SP CW522ERY wall-hung ceramic, the SW brings a more angular outline to a contemporary bathroom. The white housing and silver-coloured accent keep the detailing restrained, while water and electrical connections are concealed through the matching pan. Choose the newer TCF803EG#NW1 with white remote or the earlier TCF803CG with silver remote, subject to remaining stock.
WASHLET seat unit and remote control. The compatible ceramic, concealed cistern and frame, flush plate and installation-specific connection parts are selected separately unless expressly included in your chosen package.
A coordinated SW and SP installation
The SW suits bathrooms shaped by clean lines, fitted furniture and carefully aligned surfaces. Its more angular styling coordinates with the SP ceramic, creating a consistent outline from the lid to the wall-hung pan.
The WASHLET housing measures 108 mm high, helping the technology sit discreetly above the ceramic. Concealed service connections preserve the external lines, while the floor beneath the wall-hung WC remains accessible for cleaning.
Choose the SW for the appearance of the complete seat-and-pan combination as well as its daily comforts. The matching ceramic reference matters: the SW uses the SP CW522ERY combination, rather than the RP ceramics listed for the RW.
Choose your remote, keeping the same silver-trim design
Both versions have a white seat with silver-coloured detailing. The remote colour and controller generation distinguish the two article codes.
TCF803EG#NW1 — white remote
A discreet white controller that coordinates with white sanitaryware. The current shared SW/RW operating manual supports up to four saved wash profiles, storing water pressure, wand position and warm-water temperature.
Product code: TCF803EG#NW1
EAN / GTIN-13: 4050663097134
TCF803CG — silver remote
The earlier silver controller echoes the seat’s accent and other silver-coloured fittings. This generation provides two saved wash-setting memories. TOTO lists this article as discontinued; orders depend on remaining stock.
Product code: TCF803CG
EAN / GTIN-13: 4050663095703
Automatic hygiene, with a clear purpose at each stage
The SW prepares the bowl before use, cleans its wand after washing and adds EWATER+ mist to the ceramic afterwards.
PREMIST before use
With the automatic functions enabled, a fine mist of water moistens the bowl as you approach. Dirt is less likely to adhere to damp ceramic, helping the flush carry waste away.
EWATER+ wand cleaning
Following cleansing, electrolysed tap water automatically cleans the wand. It retracts behind a protective flap above the ceramic between washes. You can also activate wand cleaning from the remote.
EWATER+ bowl misting
The SW mists the bowl with EWATER+ after use. Its cleansing and dirt-repellent properties support everyday hygiene, and the electrolysed water returns to ordinary water over time.
A personal wash, with comfort beyond cleansing
Control the spray, warmth and drying while seated, with familiar settings available to recall from your chosen remote.
Three cleansing sprays
Choose rear washing, soft rear washing or front washing. The soft rear setting offers a milder posterior wash. Adjust the spray to a comfortable pressure and position, rather than changing your seated position to meet a fixed jet.
Precise positioning and additional spray modes
Choose from five pressure levels and five wand positions. Oscillation moves the wand backwards and forwards for a broader wash; the pulsating massage function alternates between softer and stronger water pressure.
Warm water, heated as it flows
The continuous-flow heater warms incoming cold water inside the unit. The current white-remote manual specifies five wash-temperature levels across approximately 30–40°C, plus heating off. A separate hot-water connection is unnecessary.
An adjustable heated seat and dryer
Set seat warmth independently from washing and drying. The newer controller offers five seat-temperature levels, approximately 28–36°C, plus heating off. The warm-air dryer has its own temperature adjustment; patting dry first can shorten drying time.
Automatic lid operation and gentle lighting
The lid opens when the body sensor detects your approach, then closes after departure according to the selected timing. A soft side light also responds to approach, providing discreet illumination beside the WC for night-time visits.
Odour absorption during and after use
The deodoriser draws air from the bowl through an activated charcoal filter. With Auto Power Deodoriser enabled, extraction briefly increases after you stand up. This works alongside the bathroom’s normal ventilation and requires the filter care described in the manual.
Thoughtful surfaces and straightforward maintenance
Dirt-repellent surfaces and a seamless seat ring
TOTO describes silicone-based, dirt-repellent materials on the SW unit, seat and wand. The seamless seat ring reduces joining gaps where residue can collect, complementing the automatic cleaning functions.
For cleaning access underneath, the unit can be released from its mounting base following the manual. Switch off the power first and handle the connected hose and cable as instructed. Use a soft damp cloth and the cleaners permitted by TOTO.
Descaling guidance and energy-saving settings
The SW indicates when descaling is due. You add the recommended diluted agent and start the built-in programme, which manages the sequence. The instructions also explain manual nozzle care and filter maintenance.
Automatic energy-saving settings respond to periods of reduced use. Timer settings allow scheduled periods with seat heating off, helping you balance warmth and electricity use around your household’s routine.
SW compatibility: build around the SP CW522ERY
Sharing operating instructions with the RW does not make the ceramic combinations interchangeable. Select the SW’s matching pan and plan the concealed services together.
WASHLET SW + TOTO SP ceramic
- Seat unit: TCF803EG#NW1 with white remote, or legacy TCF803CG with silver remote where available.
- Compatible ceramic: WASHLET-ready TOTO SP wall-hung CW522ERY.
- Flushing system: suitable concealed frame, cistern and flush plate, selected separately.
- Finish: concealed hose and cable routing through the prepared ceramic openings.
Check the parts for your chosen frame
TOTO lists the SP10695UN hidden-connection set and SP515011B 3/8-inch mini ball valve as connection accessories. The required arrangement depends on the frame and prepared water supply; both should not automatically be added to every installation.
Send Tooaleta the frame or cistern reference and service details so we can help identify the appropriate parts. Confirm the current compatible frame specification before first fix.
Prepare water, electricity and access before fitting
Cold water and a suitable electrical supply
The current shared manual specifies potable cold water, with a minimum 1.0 bar dynamic pressure and maximum 10.0 bar static pressure. Wash water is heated within the WASHLET.
Provide 220–240 V AC, 50 Hz electricity using the manufacturer’s connection arrangement. A qualified installer should plan earthing, RCD protection, isolation and the service positions for the actual bathroom.
Concealed routing and commissioning
Agree the pan, frame, cistern and connection parts before finishing the wall. Route the hose and cable without pinching or sharp bends, retaining the access needed for isolation and maintenance.
Complete leak checks and a functional trial, set the lid sensor for the room and position the remote within comfortable reach. Retain the version-matched instructions for future care.

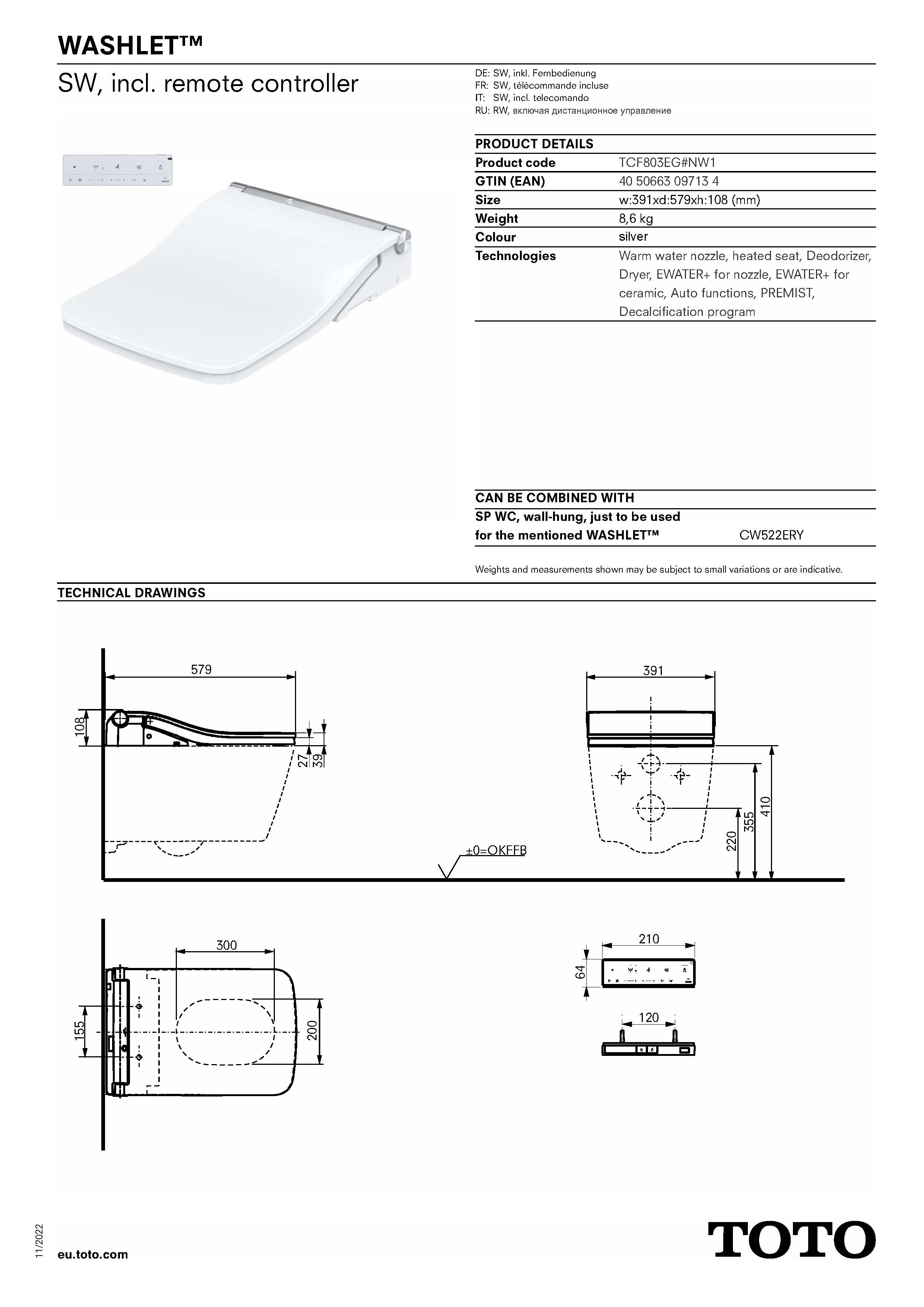

TOTO WASHLET SW: technical specifications
| Specification | Details |
|---|---|
| Manufacturer / range | TOTO WASHLET® SW |
| White-remote article / GTIN | TCF803EG#NW1 / 4050663097134 |
| Silver-remote article / GTIN | TCF803CG / 4050663095703; discontinued, while stocks last |
| Product type | Electric bidet toilet seat and lid; remote included |
| Colour / trim | White / silver-coloured accent |
| Dimensions, W × D × H | 391 × 579 × 108 mm; WASHLET unit only |
| Cleansing sprays | Rear, soft rear and front; oscillating and pulsating functions |
| Spray adjustment | 5 pressure levels; 5 wand positions |
| Water heating | Continuous-flow heater; cold-water supply |
| Temperatures: current white remote | Water approximately 30–40°C; seat approximately 28–36°C; 5 levels and heating-off options |
| Dryer / odour absorption | Adjustable warm-air dryer / automatic deodoriser |
| Saved wash settings | Current white remote: up to 4 profiles; legacy silver remote: 2. Stores pressure, wand position and water temperature. |
| Automatic hygiene | PREMIST; EWATER+ wand cleaning and bowl misting |
| Lid / lighting | Sensor-operated lid opening and closing / soft side light |
| Maintenance | Descaling indication and programme; manual nozzle, filter and surface care |
| Energy saving | Automatic and timer-based seat-heating settings |
| Supply: current shared manual | 220–240 V AC, 50 Hz; potable cold water |
| Water pressure | Minimum 1.0 bar dynamic; maximum 10.0 bar static |
| Listed compatible ceramic | TOTO SP wall-hung CW522ERY |
| Connection accessories | SP10695UN hidden-connection set; SP515011B 3/8-inch mini ball valve; select to suit installation |
| Flushing | Separate WC control; these standard SW articles do not include automatic flushing |
Temperature values are approximate and follow the current white-remote manual. The 108 mm height describes the seat unit, not the installed sitting height. Check the pan drawing and instructions for the complete installation dimensions.
Questions about the TOTO SW
What is the difference between WASHLET SW and RW?
They share many washing, drying and automatic comfort functions, and the current models share operating and installation instructions. Their design and listed ceramic combinations differ: SW pairs with SP wall-hung CW522ERY, while RW uses its specified RP pans. Choose the complete combination that suits the room.
Does the white remote mean a white-trim seat?
No. Both SW articles described here have white seats with silver-coloured trim. TCF803EG#NW1 identifies the newer white controller; TCF803CG identifies the earlier silver controller.
How many users can save their settings?
The current white controller supports up to four profiles; the earlier silver controller has two memories. These recall water pressure, wand position and warm-water temperature. Seat warmth, drying and automatic-function settings are adjusted separately.
Is the silver-remote SW still available?
TOTO lists TCF803CG as discontinued and available while stocks last. Confirm remaining stock before choosing that article. TCF803EG#NW1 is the newer white-remote reference.
Are the ceramic, frame and cistern included?
This description covers the SW seat unit and selected remote. The SP CW522ERY pan, concealed frame and cistern, flush plate and installation-specific connection parts are separate unless expressly included in the package you select.
Does the SW flush automatically?
These standard TCF803 articles have automatic lid operation, with flushing controlled separately. An auto-flush SW requires the appropriate model and compatible flushing arrangement.
Does EWATER+ clean both the wand and the bowl?
Yes. The SW uses EWATER+ for wand cleaning and after-use bowl misting. PREMIST moistens the ceramic with water before use. These functions support regular cleaning; the personal cleansing spray uses separately adjustable warm water.
Can I rely on the dryer instead of toilet paper?
The dryer is intended for use after washing and can reduce paper use. Drying time varies with the user and selected temperature. Some people prefer to pat dry first and use warm air for the final stage.
How is the SW maintained in a hard-water area?
Follow the descaling indication and use TOTO’s recommended procedure and agent. You add the diluted descaler and initiate the programme. Clean the nozzle, inlet filter, deodoriser filter and external surfaces as instructed; an ordinary inlet filter does not soften the water.
Bring the SW and SP together with confidence
Combine personal warm-water washing, adjustable drying, an automatic lid and EWATER+ care with the clean lines of the matching SP wall-hung WC.
Send Tooaleta your preferred remote option and frame or cistern details. We can help check the complete combination and identify the connection parts before you order.
Check my SW combination and remote optionAdditional Information
