MAIN CHARACTERISTICS:
Dual Nozzle System
Dedicated separate nozzles for Posterior and Lady Wash to ensure zero cross-contamination.
Electronic Bidet Seat
Toilet Seat is electric and plugs into a regular 220-240V 50-60hz outlet.
Reservoir Tank Heater
Maintains a dedicated supply of pre-heated water, ensuring an almost immediately warm and soothing wash from the very first moment.
Side Control Panel
Control panel is attached to the side of the bidet seat.
Warm Air Dryer
A gentle, soothing flow of warm air that reduces moisture and the need for toilet paper. Features adjustable temperature settings for a comfortable, hands-free finish.
Details
USPA 6635R Design: Slim Profile, Complete Premium Feature Set
The USPA 6635R Design model is the choice for those seeking cutting-edge hygiene technology in a more slender, aesthetically refined package. It houses the exact same high-specification internal mechanics and advanced comfort features as the Comfort and Standard variants but is specifically contoured for a sleek fit on modern, D-shaped ceramics. This unit is controlled entirely via the intuitive double-sided wireless remote.
Key Functionality (Identical Across All 6635R Models)
- Personalisation: 2 User Memory Profiles to save individual preferences and a Night Light for safe, convenient nighttime use.
- Wash Programmes: Dedicated Posterior and Feminine wash, plus specialised Child Mode and Auto Mode programmes.
- Comfort: Instant Warm Water for cleansing and a multi-level Heated Seat for exceptional, year-round luxury.
- Freshness: Integrated Warm Air Dryer and a powerful, active Deodoriser for a complete, fresh finish.
- Safety: Complies with the vital EN 1717 standard for UK plumbing safety.

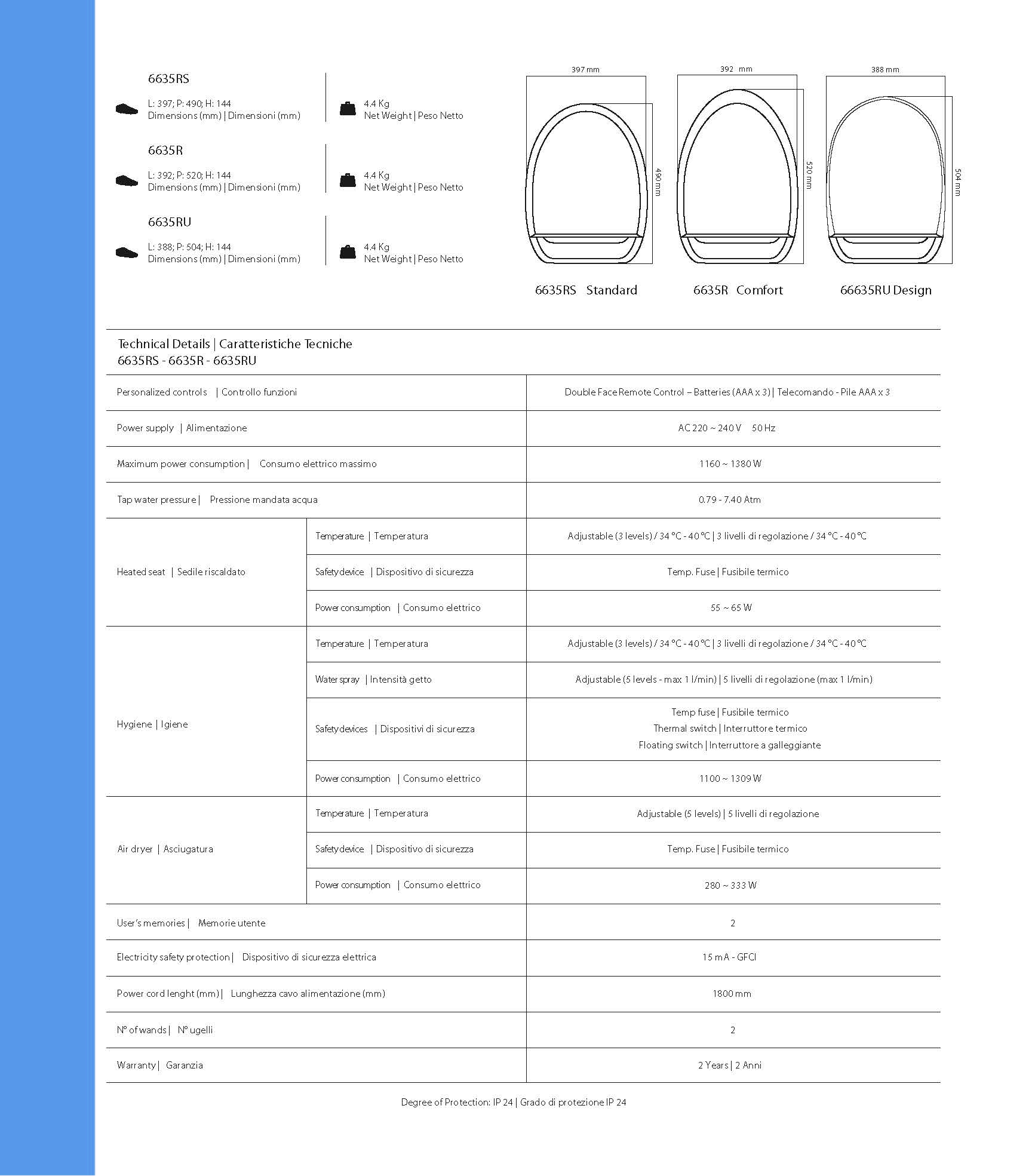

Technical Specification (Design 6635RU)
| Feature | Detail |
|---|---|
| Model Dimensions (L x W x H) | 504 mm x 388 mm x 144 mm |
| Net Weight | 4.4 Kg |
| Power Supply | AC 220-240 V, 50 Hz |
| Max Power Consumption | 1160-1380 W |
| Water Pressure Range | 0.79 - 7.40 Atm |
| Heated Seat Temperature | Adjustable (3 levels) / 34 °C - 40 °C |
| Water Spray Intensity | Adjustable (5 levels, max 1 l/min) |
| Air Dryer Temperature | Adjustable (5 levels) |
| Protection Rating | IP 24 |
| Safety Certification | EN 1717 Compliant (UK) |
Installation and Fit (Design)
The Design shape is the slimline option in the series, sharing the identical feature set with the Comfort and Standard shapes. It is imperative that you refer to the detailed dimension diagram to check compatibility with your specific D-shaped ceramic model. This unit is fully EN 1717 certified, protecting your potable water system from contamination and giving you absolute peace of mind.
Additional Information
| Size | 516mm - 530mm |
|---|---|
| Weight | 7 |
| Delivery time: | 7 Days |
| Specifications: |
|
Product Attachments
| Name | Description | Typ | Size | Download Link |
|---|---|---|---|---|
| USPA 6635R | Brochure |  |
922.23 KB | USPA 6635R |
| USPA 6635R | User Manual | |
8 MB | USPA 6635R |
| USPA 6635R | Printable Template | |
599.22 KB | USPA 6635R |
