tece wall mount toilet frame support  T9300300

TECE profil wall-mounted toilet module with concelead cistern for shower toilet, H:112 cm 9300300

Regular Price: £319.20

Special Price £233.13

(In stock)

-26%
  • tece wall mount toilet frame support  T9300300 tece wall mount toilet frame support  T9300300
  • tece wall mount toilet frame support  T9300300 tece wall mount toilet frame support  T9300300
  • tece wall mount toilet frame support  T9300300 tece wall mount toilet frame support  T9300300
  • tece wall mount toilet frame support  T9300300 tece wall mount toilet frame support  T9300300
Best price guarantee
Warranty information

TECE profil wall-mounted toilet module with concelead cistern for shower toilet, H:112 cm 9300300

Features

  • Accessory

Short description

Note: when using ceramic toilets with reduced support surface (e.g. Villeroy & Boch Memento, Sentique, Subway 2.0 you will need to install the steel support set 9041029 in the lower construction space (available separately).

Availability: In stock

Regular Price: £319.20

Special Price £233.13

Incl. VAT


Stock: in stock
Delivery time: 3-4 Days
  • Buy 2 for £221.13 each and save 6%
  • Buy 3 for £219.13 each and save 7%

Details

Name:

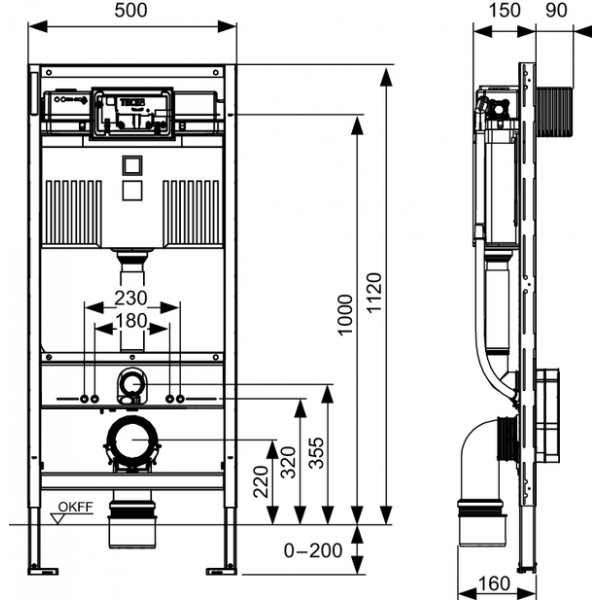

TECEprofil toilet module with Uni cistern, installation height 1120 mm
Description:
Toilet module including “easy fit” flush plate installation and conduit to connect electronic shower toilets. For fitting to TECEprofil section tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module; also suitable for single block assembly.

Uni cistern for front actuation:
  • Safety tank made of impact-resistant plastic, tested to EN 14055
  • Cistern fully pre-assembled and sealed
  • Cistern connection with outer thread R 1/2" at the side, compatible with quick adapters
  • 10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush.
  • Insulated against condensation water
  • For TECE flush plates and toilet flush handle
  • Can be used as a single or dual-flush cistern
  • “easy fit” flush plate installation
  • Installation tunnel for service opening, can be shortened without tools
  • Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109


Module frame:
  • Self-supporting, powder-coated
  • Two M 12 retaining bolts and nuts
  • Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP
  • Joint adapter also suitable for horizontal installation
  • Toilet connection set DN 90
  • WC connection box including shell protection and conduit for universal shower WC connection (check position), with junction box and cover for transformer.


A raised ceramic attachment for a sitting height of 48 cm can be added in keeping with German standard DIN 18040 (DIN 18040: Barrier-free construction - Part 1: Publicly accessible buildings and workplaces).

Please order separately:
  • Toilet flush plate (see flush plates)
  • Fitting for pre-wall, corner or wooden stud wall structures
  • Insert chute for cleaning tablets (optional)
  • TECE upgrade set dry-wall for TECE shower toilets (optional)


Note:
If toilet ceramics with a reduced supporting surface are used (= distance from middle of fixing bolt to lower edge of supporting surface is not larger than 18 cm) - e.g. V & B Memento, Subway 2.0 - it is necessary to install the steel brace set 9041029 in the lower build space.
Commodity group:
905
Product group:
2009050010
Quantity unit:
pc.
GTIN:
4027255085343

Additional Information

Size No
Weight 35
Delivery time: 3-4 Days
Specifications: No

Product Attachments

Name Typ Size Download Link
TECE Profil 1120mm Installation instructions pdf 6.87 MB TECE Profil 1120mm Installation instructions
TECE Profil toilet mounting instructions pdf 282.79 KB TECE Profil toilet mounting instructions
TECE Profil / TECE Box 980mm/1120mm Service Manual pdf 1.63 MB TECE Profil / TECE Box 980mm/1120mm Service Manual
