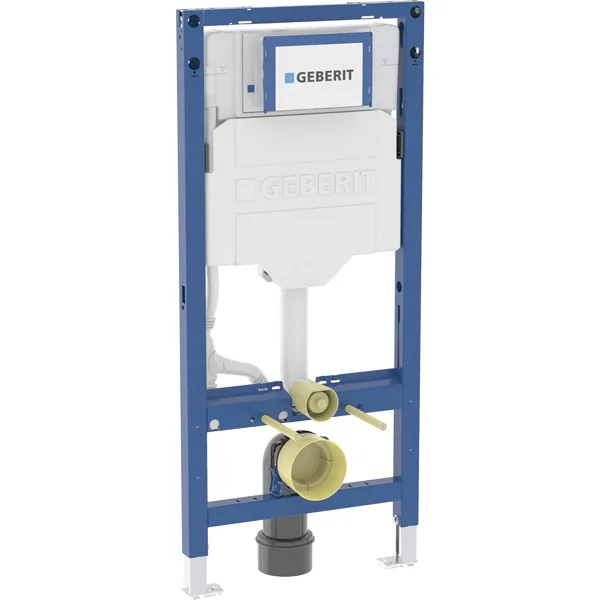

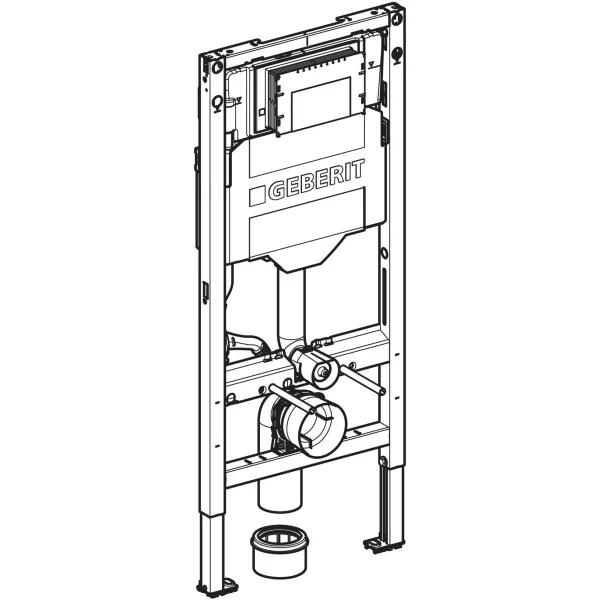

Geberit Duofix UP320 Built-in Frame 112cm with Sigma concealed cistern without wall fixings (111300005).
The Geberit Duofix UP320 is a self-supporting concealed cistern and frame designed for connecting wall-hung toilets. The Duofix UP320 is suitable for installation for partition walls, in-wall installations, in stud walls, in lightweight construction, and pre-wall installations.
Having the perfect wall-hung toilet with little to no fuss can be a reality. Install any wall-hung toilet with this easy to use universal system.
Get yours today and enjoy the best set up for a wall hung toilet!
Features:
⦁ Built-in Frame
⦁ Duofix series
⦁ Water tank UP320 with front triggering
⦁ 25-year guaranteed availability for buying the spare parts
⦁ Recessed tank for assembly and maintenance without tools
⦁ Graduated support legs (cm)
⦁ Orientable legs for profiled mounting UW50/UW75
⦁ Universal bell for easy release button, dual flush and stop flush
⦁ Adjustable flush volume (6 and 3 L)
⦁ Water supply on the back or top centre
⦁ Floating Impuls380 tap
⦁ Highly adherent plastic frame
⦁ Used to install a Wall Hung Toilet
⦁ For installation in a wall applique local or partial height

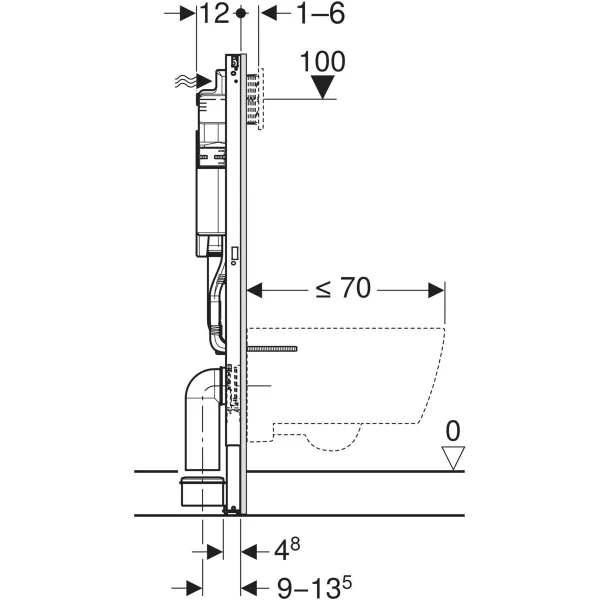

Technical Information

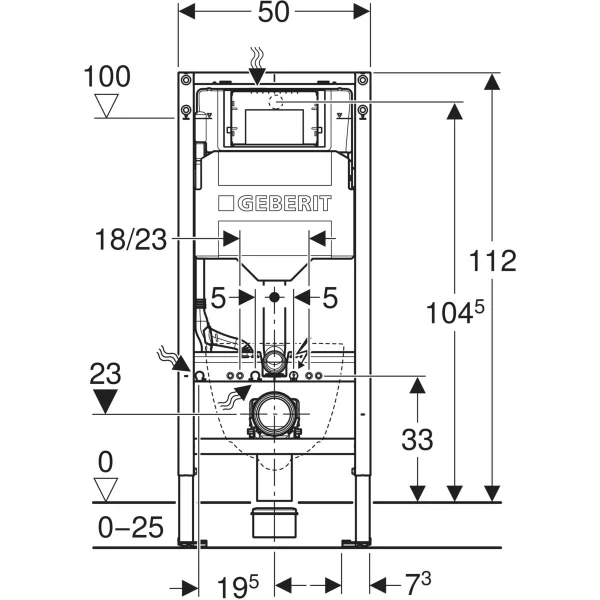

⦁ Dimensions: 1120 x 500 x 201 mm
⦁ Height of the toilet frame 112 cm with adjustable leg length 0-20 cm
⦁ For connecting wall-hung toilets
