Instalation guide - Do it yourself
T00aleta installation guide offers step by step instructions for installation on your existing toilet or when refurbishing / renovating.
Please view further electricity and water connection options here.
Manufacturers offer bidet seata as "DIY" "Do it yourself" meaning installation is simlified and does not require an authorized installer.
You can safely cut the electricity cord, for hard-wiring or extensions without voiding the warranty.
If you would like an expert for installation, T00aleta offers a search engine for installers in your region (currently in the process of extending the database).
Will it fit my toilet?
At Tooaleta we have made this an easy Two Step process. If you have any questions, please don't hesitate to give us a call at +448081350068, send us an E-Mail us or contact us via Live Chat Support.
STEP ONE:
First, you have to determine whether you have a Wall-hung or Close-coupled toilet. The main difference is that Elongated bidet seats usually fit Wall-hung toilets best, while Round/short version is usually competible with Close-coupled toilets.

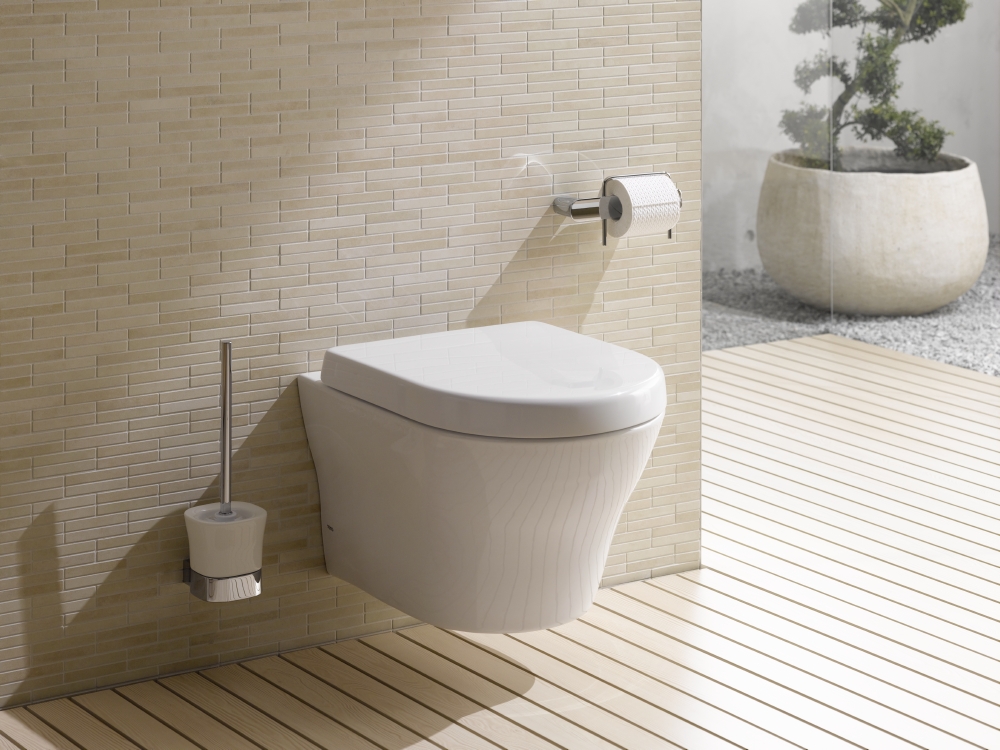

Wall-Hung TOILET |
Close-Coupled TOILET |
|
Toilet Fit for Wall-Hung: Virtually all bidet seats we carry will fit Wall-hung toilets.. |
Toilet Fit for 1-Piece Toilets/close-coupled Virtually all Standard and short versions of bidet seats fit Close-coupled toielts. There may be some restrictions on the type of bidet seats that will fit these toilets, so to be sure we suggest you call or email us with your make and model. If you're unable to find the model number, please contact us for assistance. |
STEP TWO:
This step shows you how to measure your toilet to determine if it's a round or an elongated size.
Measuring the clearance between the bidet seat and the toilet tank:
Measure the distance from the front of the water tank to the center of dotted line 'B' as shown below. There must be at least 1.75 inches (or more) of clearance for the bidet seat to mount properly.
In the unlikely event that your measurement is less that 1.75 inches, the please call us at +448081350068, E-Mail us or contact us via Live Chat Support.so we can discuss the make and model of your toilet.
Measuring the length of your toilet bowl:
All our bidet seats come in two sizes: Round or Elongated.
- Round Seat - The 'A' dotted line measurement of 17 inches or less from the middle of the two seat bolts to the outside front of the bowl (exactly as shown in the below picture).
- Elongated Seat - The 'A' dotted line measurement of 17 inches or more from the middle of the two seat bolts on the back edge of the toilet (exactly as shown in the picture below).
dusch wc , dusche wc , spatoilet , geberit dusch wc , popodusche , i love water , ich liebe waser , washlet , dusch wc shop , dusch wc online shop , dusch wc e-shop , euro bidet shop , bidets in europe , Dusch - Wc , Dusch-Wc , Dusch -Wc , Dusch- Wc , aquaclean , aqua clean , geberit aqua clean , geberit dusch wc , Coway BA 13 dusch wc , duravit dusch wc , sensowash dusch wc , Vovo dusch wc , Bauhaus Dusch wc , Bauhaus popodusche , roca welness wc , roca wellness toilet , toto washlet , toto.eu , coway , coway.eu , c
oway.com , inax , biobidet , dusch-wc , coway dusch wc , uspa , uspa bidet , uspa dusch wc , duravit dusch wc , senowash starck , Dusch-WC Center: Das Schweizer Kompetenzzentrum für Dusch-WC , scweizer dusch wc , electronic bidet , digital bidet , coway schweizer , Geberit AquaClean , Duravit SensoWash , spa toilet, spatoilet, spawc, uspa dusch wc , tankless toilet , smart toilet , intergrated toilet , dusch wc t00aleta ,
Examples of installations from our satisfied customers:

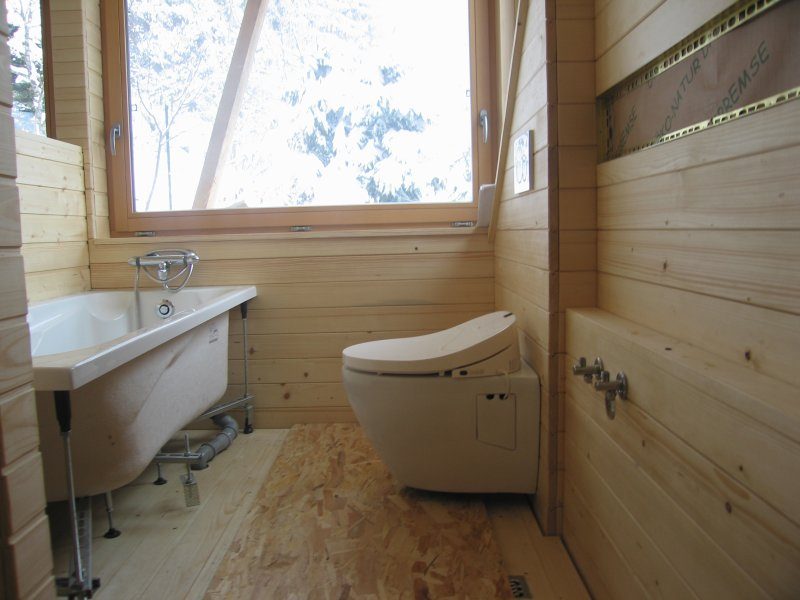

Coway BA13-BE Installation example 2
Combined with Closette By Letrone toilet pan
Coway BA13-BE Installation example 3
Combined with Wall-hung Closette By Letrone

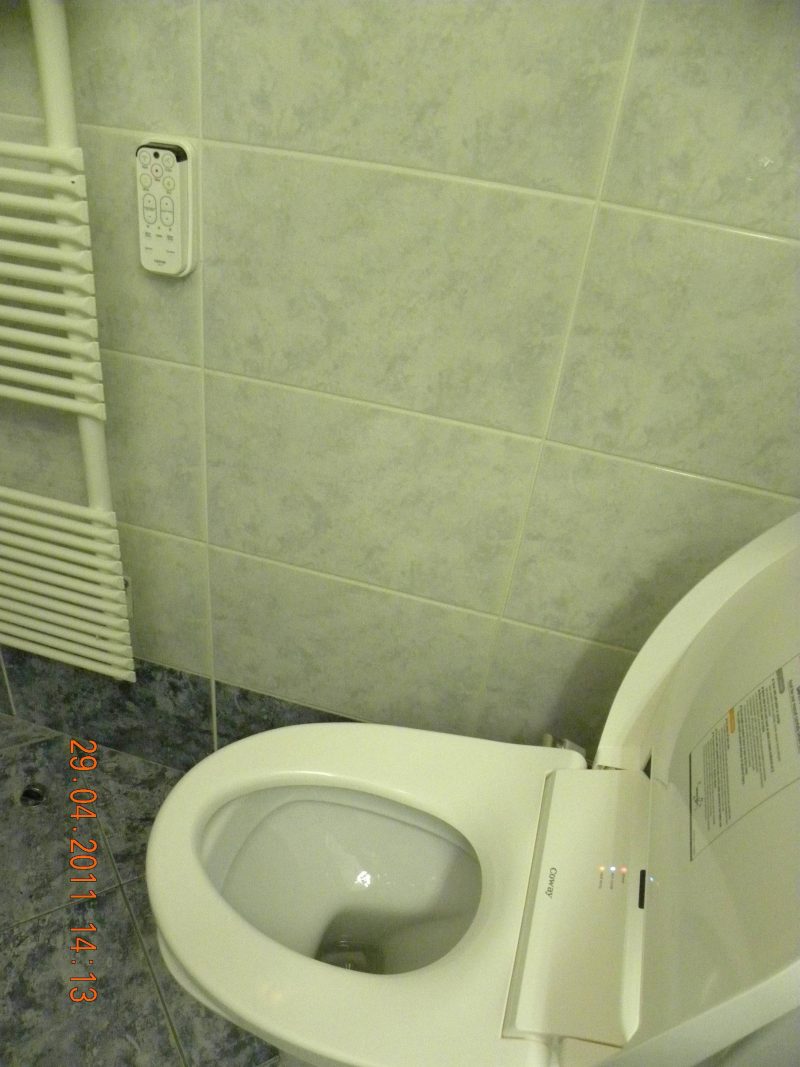

Coway Ba13 bidet seat Installation
Adhesive Trunk used for wiring (avoiding the need for extensive tile and wiring work)
Coway ba13-BE digital bidet seat
To avoid the need to cut marble adhesive trunking was used.
Coway ba13-BE digital toilet bidet seat
A hole was drilled trough the wall and plugged in at the other side.
Water supply had to be improvised (drilling a hole through the plastic push plate), because of the out dated wall-hung cistern.

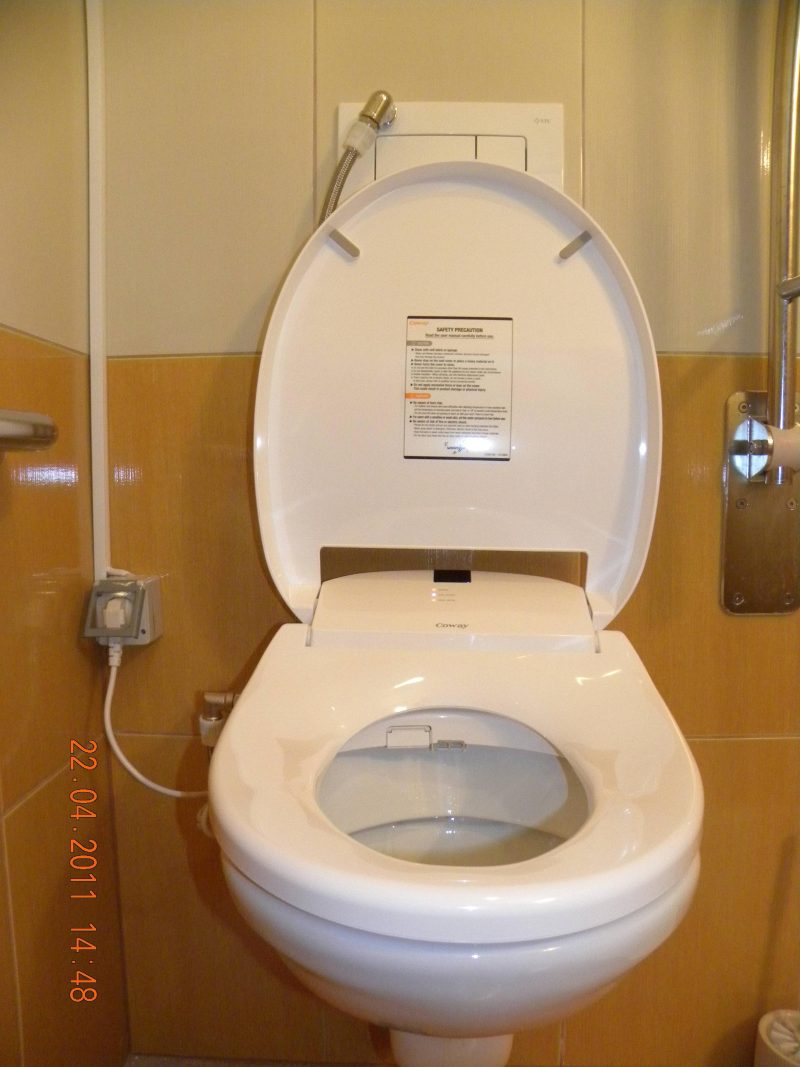

Coway BA13-BR Shower toilet bidet seat
Adhesive trunking and plug directly taped to the tiles.
Water supply had to be improvised, because the wall-hung cistern is upwards of 10 years old.

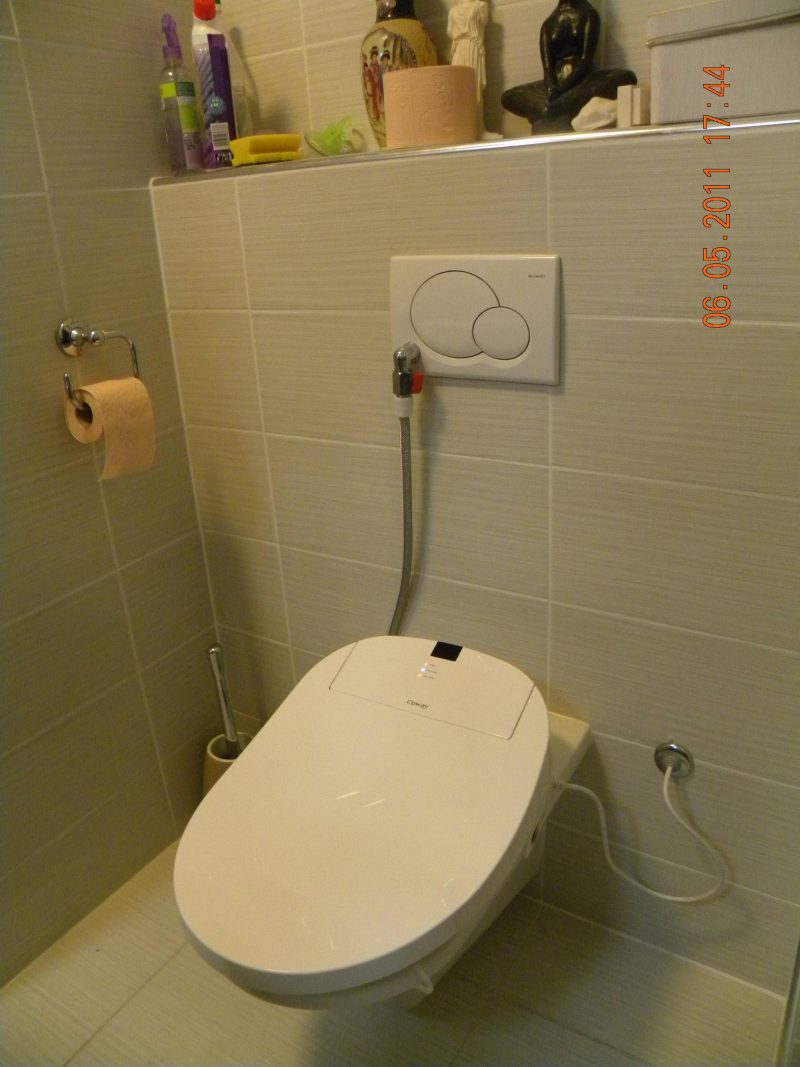

Coway ba13-BE toilet shower bidet seat
Simple installation in this case, water connected to the corner valve supplying the water cistern (using the Coway T-connector that comes with)
Coway BA13-BR bidet toilet seat
Installed in a public bathroom.
Coway ba13-BE digital bidet seat
Customer was advised the Coway ba13-BR (round) which would be a better fit for the shape of the toilet, but the customer opted out for the longer Coway ba13-BE version.
Coway BA13-BE toilet shower bidet seat
One-piece toilet combined with the Coway bidet seat. As always a straight forward installation, because of the easily accessible water supply with close coupled toilets.
Coway BA13-BE shower toilet seat
Public Handicap toilet equipped with the Coway bidet seat.
Connecting the water via the push plate is clearly visible.
Coway ba13-BE digital bidet seat
Close coupled toilet and Coway bidet seat washlet
Coway ba13-BE shower toilet bidet
Customer opted for a longer Coway ba13-BE with its elongated shape its less suitable for the customers toilet shape. Coway ba13-BR while a perfect fit is slightly shorter which is noticeable in the size of the seat "hole" it self.
Coway ba13-BE digital bdiet toilet seat
Adhesive trunking used for wiring, saving significant installation costs.
Water source directly from the cistern behind the push plate.
Coway BA13 fitted to a handicap toilet.
Coway ba13-BE shower toilet seat
Coway fitted to a wall hung toilet during bathroom renovations.
A corner valve was properly installed allowing for a neat finish.
Coway ba13-BE luxury bidet seat
Installed in an upscale apartment, Coway BA13 combined with a wall-hung toilet and a Geberit frame/push plate

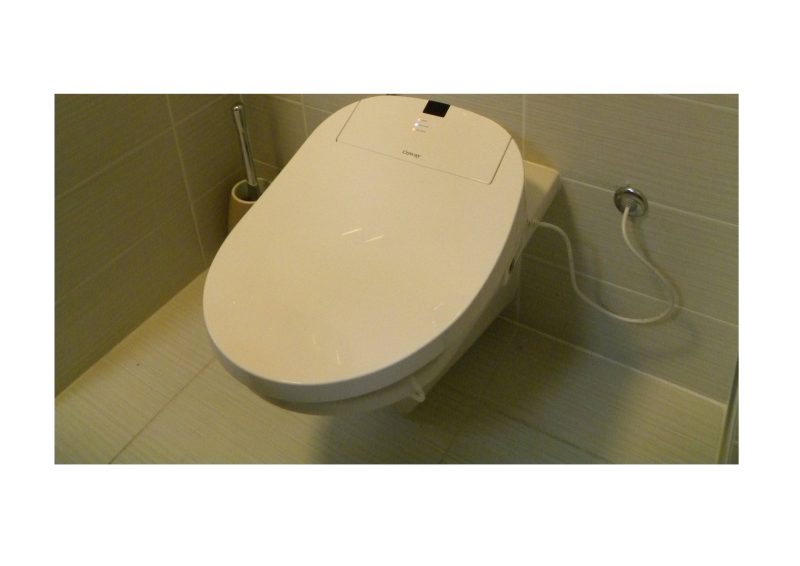

Coway ba13 Installation example
Electrical supply connected from the other side.
Coway ba13-BE toilet shower bidet seat
Geberit Duofix 82cm was used for fitting the toilet, to accommodate the short ledge Installed in a public bathroom.
Coway ba13-BE toilet shower Washlet
DIY installation - customer drilled through the wall and plugged the cord on the other side.
For the water supply, the customer also simply drilled a hole into the push plate and connected it to the water source located directly behind.
Coway ba13-BE digital bidet toilet
Installed on a wall-hung toilet pan
Coway ba13-BE digital shower seat

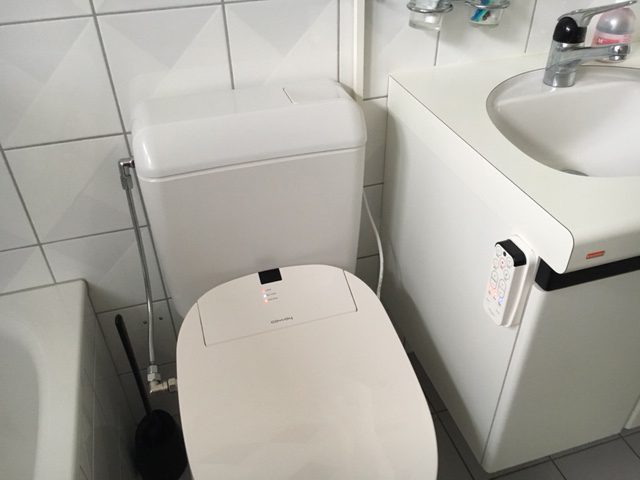

Close coupled toilet and a Coway ba13
Coway ba13-BE digital bidet seat
Elbow connector visible on the photo is supplied with the Coway ba13 installation material.
Coway ba13-BE luxury bidet seat washlet
A beautiful corner valve can make difference in the finish result. Not to mention the glass and stainless steel Geberit Sigma50 actuator plate
Coway ba13-BR bidet seat
Customer opted for a longer Coway ba13-BE even though the Coway ba13-BR (ROUND) would be more suitable.
Coway ba13-BE Korean made "Japanese Toilet"

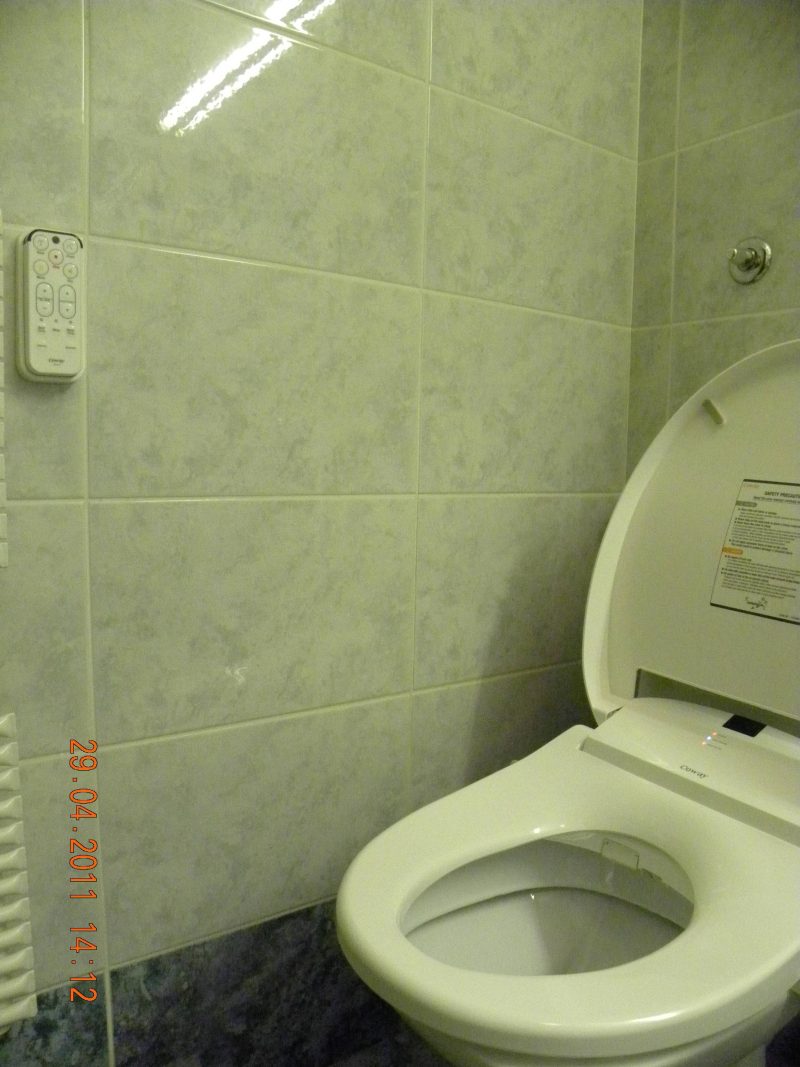

Another angle of the installation
Coway ba13 bidet spray toilet seat
Many customer choose a longer bidet seat even when a smaller more would be more suitable.
Coway ba3-BE combined toilet bidet
Another angle of the same installation of Close coupled toilet pan and Coway ba13 combination
Washlet Water supply from an old dry-wall cistern
Close-up of the an installation where the customer had an older dry-wall cistern.
With all newer models an empty hose is located inside the frame, so that the customer only has to drill a small hole at the bottom next to the toilet and install the corne
Coway BA13 Luxury "Japanese" toilet bidet seat
Geberit Sigma 50 Push plate (Black glass and stainless steel actuator buttons)
Electricity is connected to the grounded socket directly
Maro D Italia DI600 Aqualet Dusch WC
WC Dusche von Maro D'Italia
back to wall toilet pan maro italia di600 washlet
Washlet Maro D'Italia di600 combined with a floor-standing back-to-wall toilet wc pan.
Aquaclean Di600 Maro D'Italia
wall-hung toilet pan combined with Washlet Maro D'Italia DI600
Maro DI600 Washlet

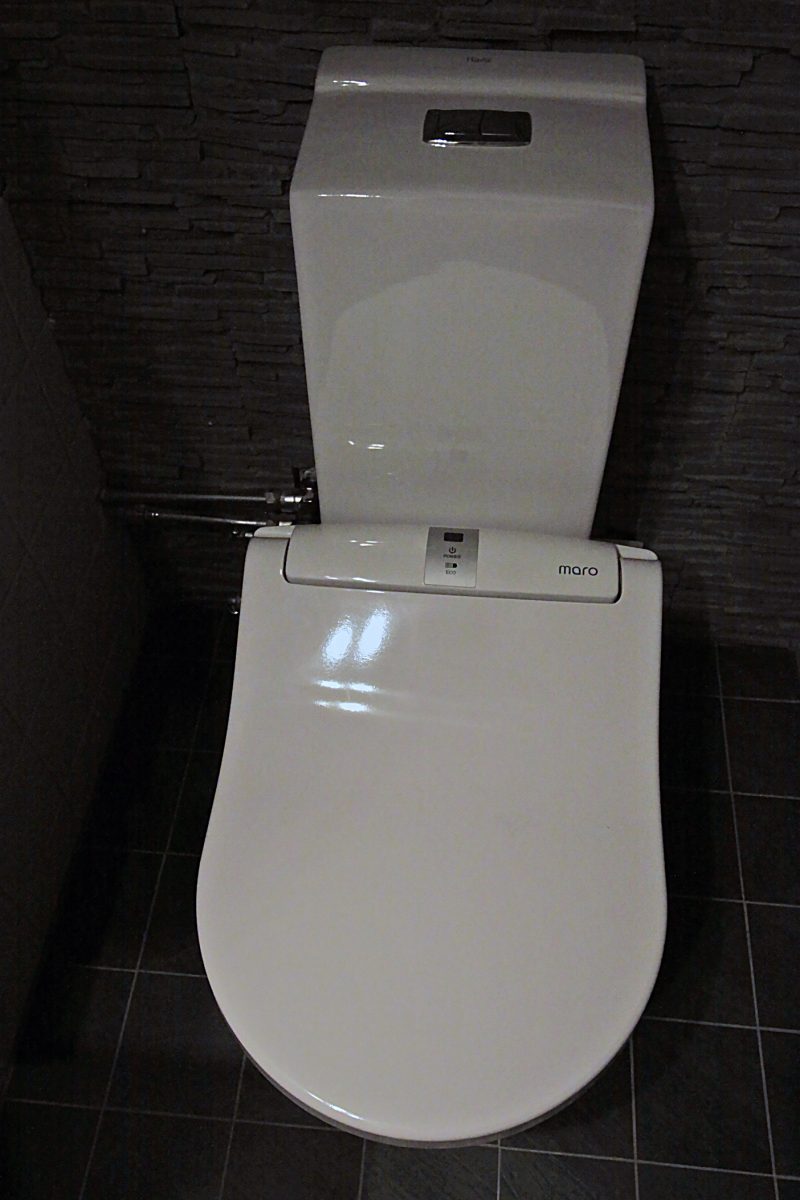

close-coupled toilet combined with Maro DI600 Washlet
FP108 washlet bidet seat
Maro D'Italia FP108 shower toilet
Maro D'Italia FP108 non-electric toilet shower
Cold-water connection corner valve installation washlet FP108 aquaclean
Maro D'Italia Di600 close-coupled combination
Maro Di600 biobidet sensowash
digital bidet Di600 Maro
Close coupled one piece toilet pan combination washlet Maro Di600 aqualet
Dib Daewon J500 close coupled
Dib Daewon J500 close coupled shower toilet installation from satisfied customer.
washlet di600 maro d'italia
washlet japanese toilet bidet seat maro d'italia di600 aquaclean
Installation washlet japanese toilet
maro d'italia di600 popodusche washlet
washlet maro d'italia di600
washlet center repair service japan toilet bidet
maro non electric
maro non electric bidet washlet
Coway BA13 toilet shower
Coway ba13 bidet combination
coway ba13
coway ba13
maro elongated washlet
aquaclean
maro machenical cold water bidet
bidet cold water
cold water washlet
cold water biobidet
dib daewon
dib daewon clean sense 1500 r
washlet maro d'italia di600
japan toilet maro di600 shower toilet
aquaclean di600 maro italia
aqua clean bio bidet washlet toilet seat
Japan washlet di600
japanese toilet shower bidet seat di600 made in italy
Di600 aqualet
japanese bidet shower
TOTO SG Washlet
TOTO Washlet SG
TOTO Washlet SG
TOTO Washlet SG
Maro D'italia FP106 toilet bidet combination
Completely mechanical (non-electric). It can be connected to a thermostatic valve or hot and cold water mixer
Maro D'Italia non-electric FP106 toilet bidet seat
Simple installation using the supplied T-connector
Maro D'Italia FP106 toilet bidet washlet
Slim design Washlet seat with no electricity required.
coway toilet bidet
coway ba13 bidet toilet bidet seat
Coway ba13 WRAS
WRAS Coway ba13 toilet bidet seat UK
united kingdom toilet bidet shower
shower toilet bidet UK

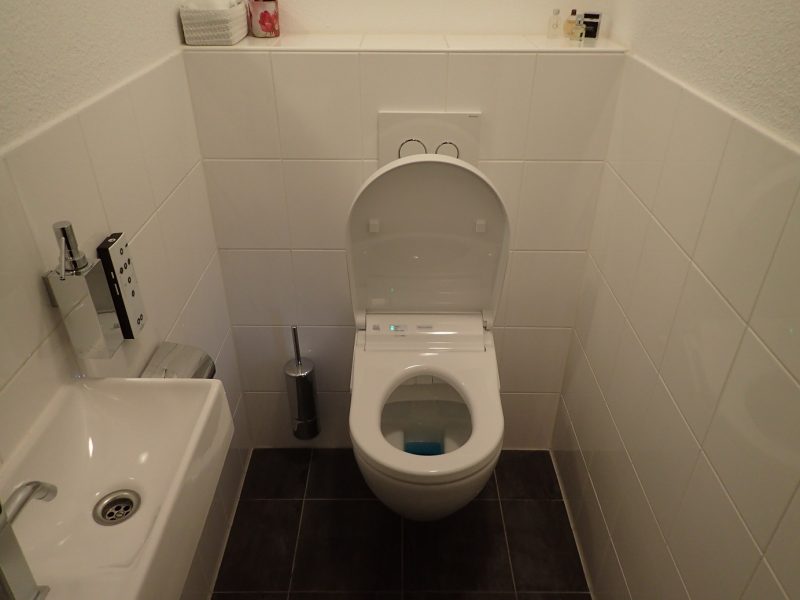

villeroy boch viclean-u
Shower toilet bidet viclean-u villeroy & boch
maro toilet bidet seat di600 italia
united kingdom bidet toilet seat washlet
Maro D'Italia Di600 aquaclean aqualet
aquclean maro italia di600 aqualet

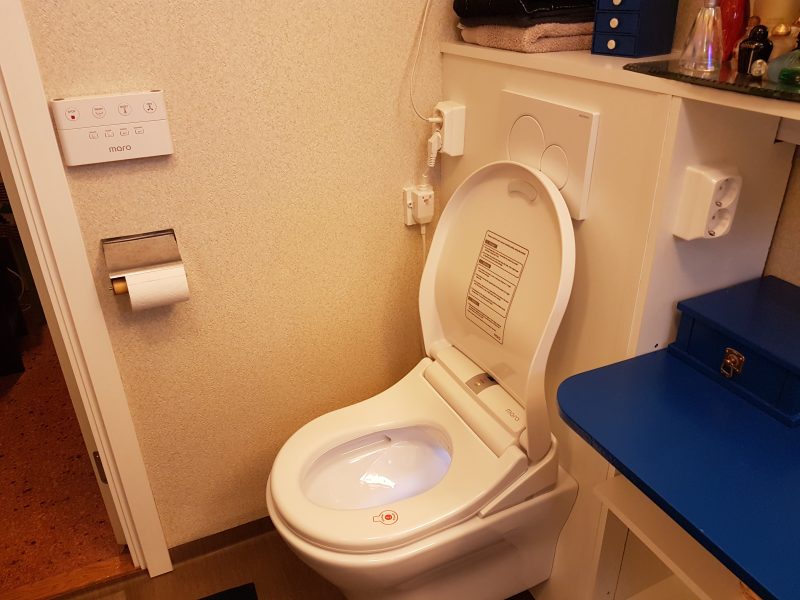

Maro D'Italia DI600 and TOTO MH CW162Y Rimless toilet
Customer had a socket near by, which made the installation very straight forward
Maro D'Italia DI600 and TOTO MH CW162Y Rimless toilet #2
Toilet bidet seat combination of Maro And TOTO
Maro D'Italia DI600 and TOTO MH CW162Y Rimless toilet #3
Toilet bidet seat combination

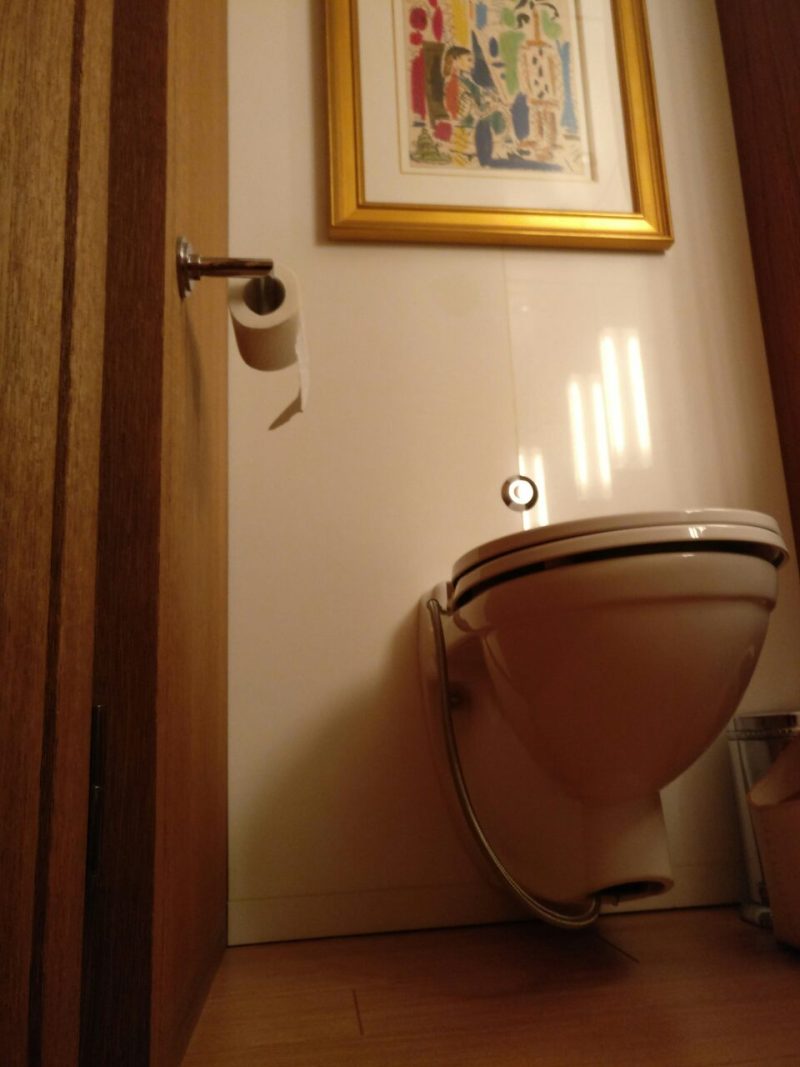

Maro FP108
Maro FP108 non-electric bidet seat
Coway BA13 Japanese toilet
Shower toilet installed in an apartment
Maro FP108 non-electric machenical bidet seat
Maro FP108 non-electric shower toilet bidet seat
TOTO Washlet SG Installation
Previous wall-hung toilet was replaced for a TOTO Washlet SG wall-hung combination

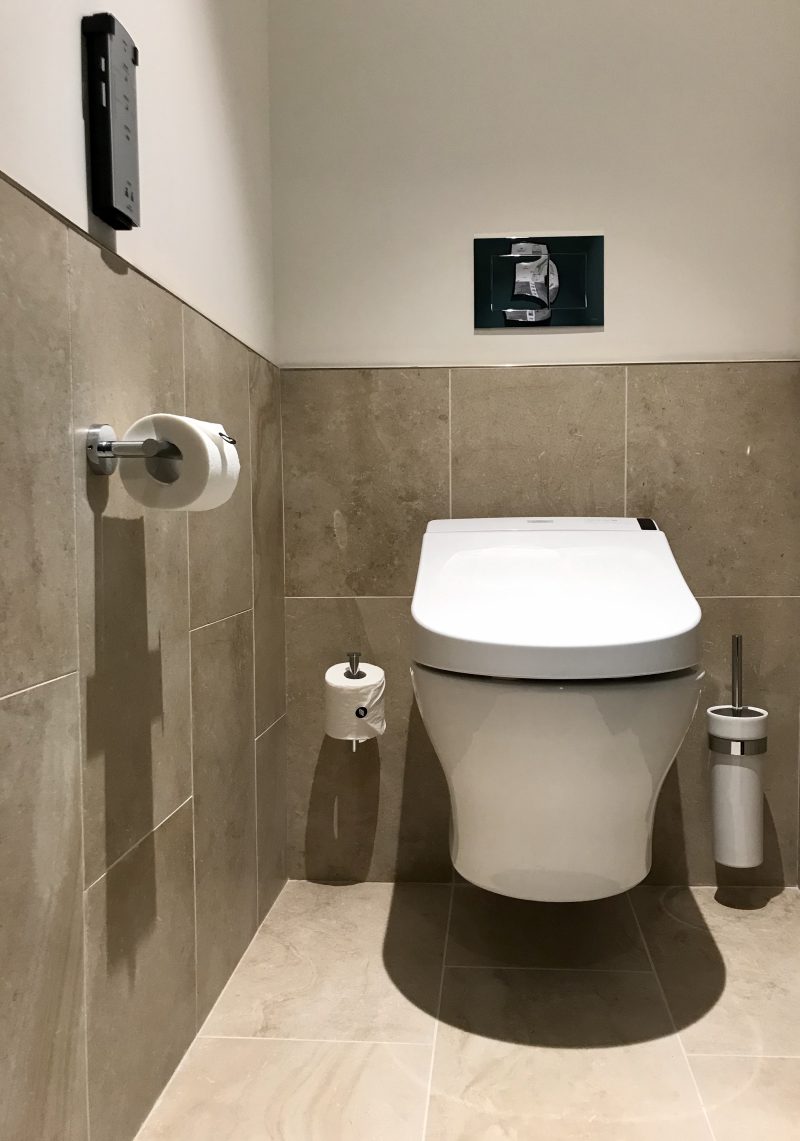

TOTO Washlet GL Installation
Customer replaced his previous wall-hung toilet with TOTO MH CW162YH rimless in combination with TOTO Washlet GL 2.0 with hidden connections

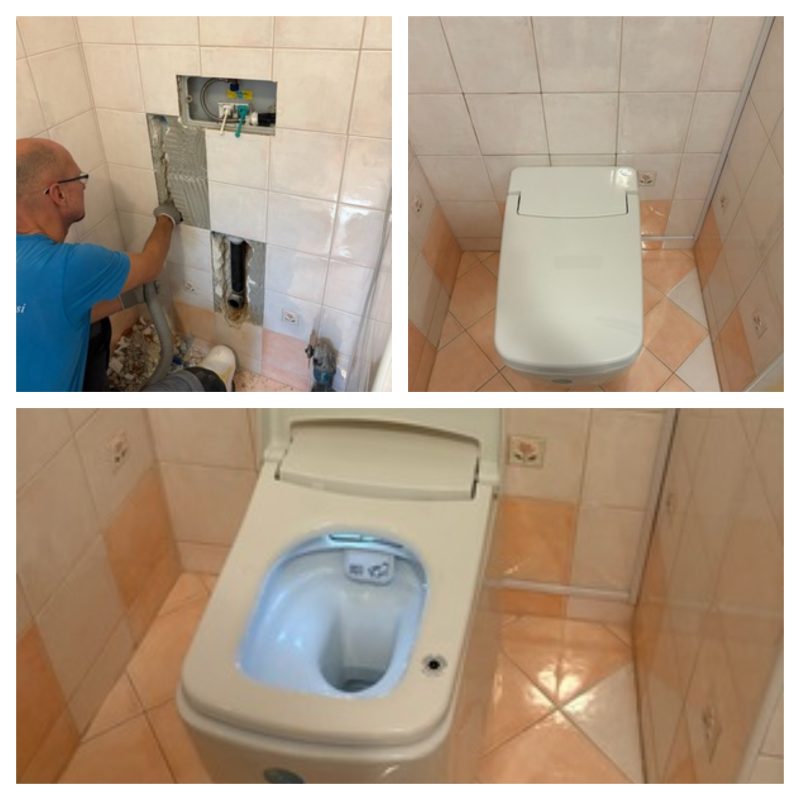

Vitra V-Care installation
Customer swapped his Close coupled toilet for a Geberit dry-wall wall-hung frame and installed the Vitra V-Care
Maro D'Italia Di600 with TOTO MH CW162Y Rimless wall-hung toilet
Optimally hidden connection (with exception of the electricity cable, which can lead into the wall directly from the center back of the bidet seat)
Maro D'Italia DI600 combined with TOTO NC CW762Y
Wall-hung rimless TOTO NC combined with Maro D'Italia DI600. Note the height of the socket because of the proximity of the sink. Ideally the socket would be placed on the right side (when facing the toilet)
Maro D'Italia DI600 combined with TOTO NC CW762Y
Customer installed the TOTO NC and Maro DI600 combination with the Geberit Duofix and Chrome plated Sigma 20 flush plate.

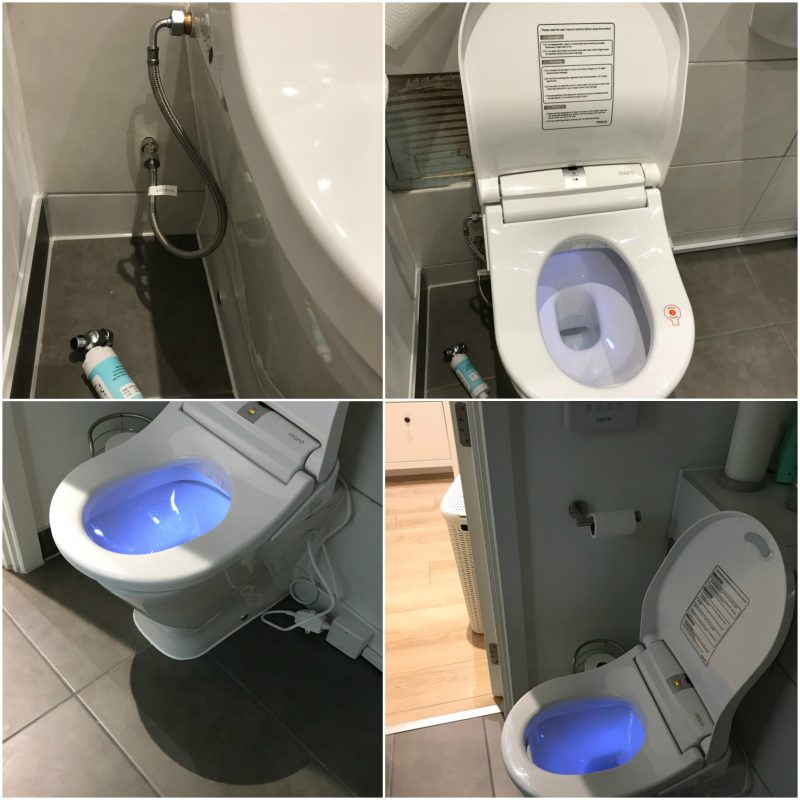

Maro D'Italia Di600 toilet bidet seat instalaltion on a floor-standing toilet
Maro D'Italia Di600 was installed onto an existing floor-standing toilet.

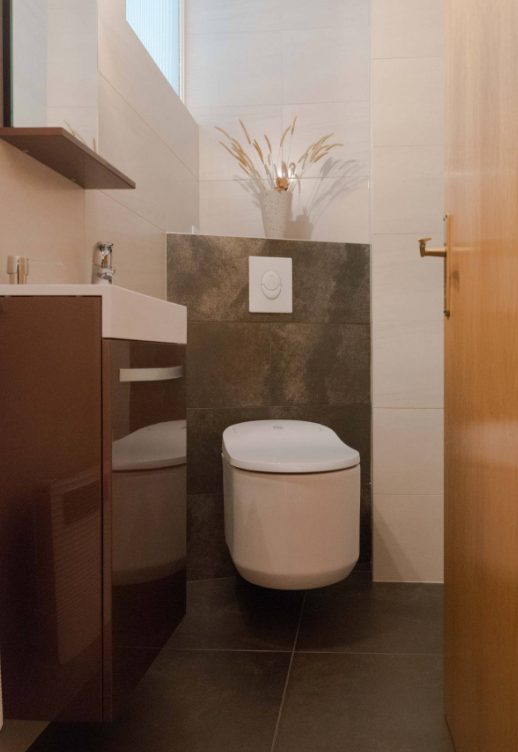

Grohe Sensia Arena Customer Installation
Grohe Sensia Arena Customer Installation #2
Maro D'Italia Di600 Customer installation
Bathroom renovation
Maro D'Italia DI600 Aqualet bidet seat with TOTO Rimless toilet Pan
Customer plugged the unit in, on the side of the wall, directly behind the toilet.
Maro D'Italia DI600 Aqualet bidet seat with TOTO Rimless toilet Pan
Installer preparing to mount the free water softening filter which comes with every bidet seat purchase.
Maro D'Italia DI600 Aqualet bidet seat with TOTO Rimless toilet Pan
Rimless tornado flush TOTO pan combined with Maro Washlet
Geberit Aquaclean Tuma Installation
Customer installed our Geberit Aquaclean Tuma
TOTO Neorest Washlet Installation
TOTO Neorest EW complete set with a Hydrobrush toilet hand-held toilet cleaner
TOTO Neorest Washlet Installation #2
TOTO Neorest EW complete set with a Hydrobrush toilet hand-held toilet cleaner
TOTO Neorest Washlet Installation #3
TOTO Neorest EW complete set with a Hydrobrush toilet hand-held toilet cleaner
Vitra V-Care Comfort Shower Toilet Installation
Geberit Duofix UP320 with the Vitra V-Care Comfort complete set
Coway ba13-BE 519mm Customer Installation
Coway ba13 shower toilet customer installation
Coway ba16 Installation example
Coway ba13 toilet bidet seat installation

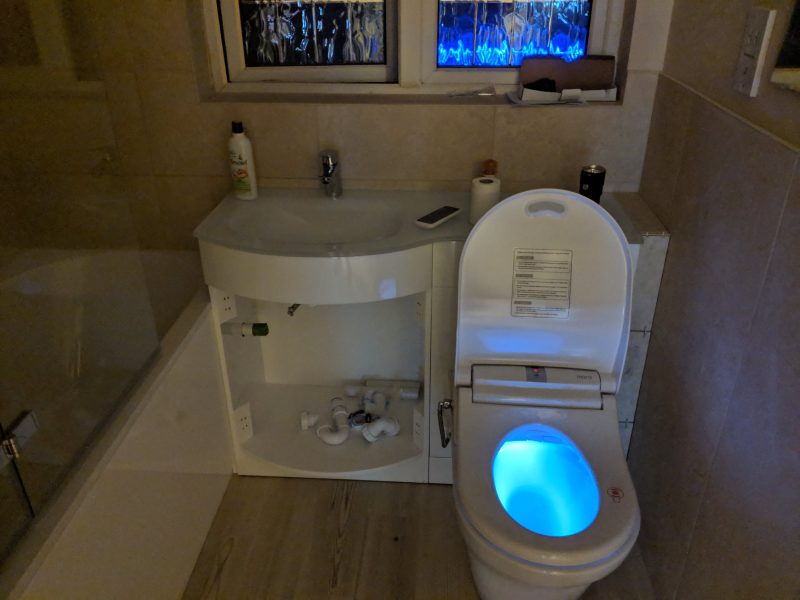

TOTO MH CW163Y Rimless Floor-standing + Maro D'Italia DI600
TOTO MH CW163Y Rimless Floor-standing back-to-wall toilet pan with additional coating with Maro D'Italia DI600 Shower Toilet

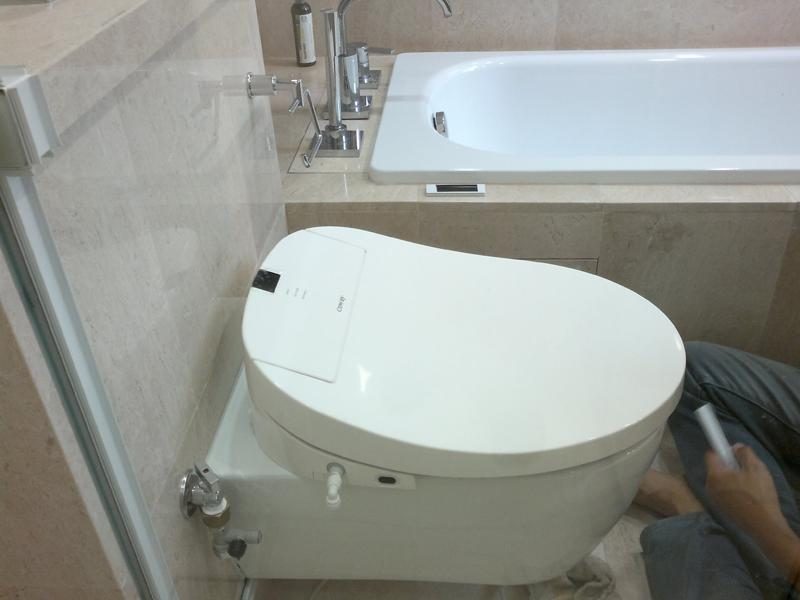

Coway ba13-BE with existing wall-hung pan
Installed onto an existing wall-hung toilet pan. Straight forward installation.
Coway ba13-BE with existing wall-hung pan #2
customer installed it onto an existing wall-hung toilet pan
Dib Daewon 120 Bidet seat
Installed onto an existing close-coupled toilet pan
Dib Daewon 120 Bidet seat #2
installed onto an existing close-coupled toilet pan

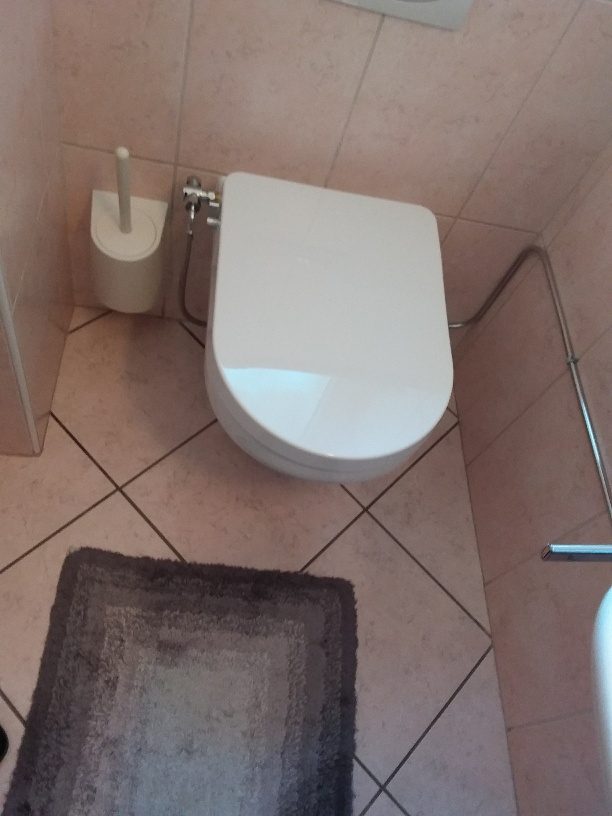

Maro D'Italia FP104 Non-electric toilet bidet seat
Customer combined his existing Villeroy & Boch toilet pan with the Maro D'Italia FP104 bidet seat

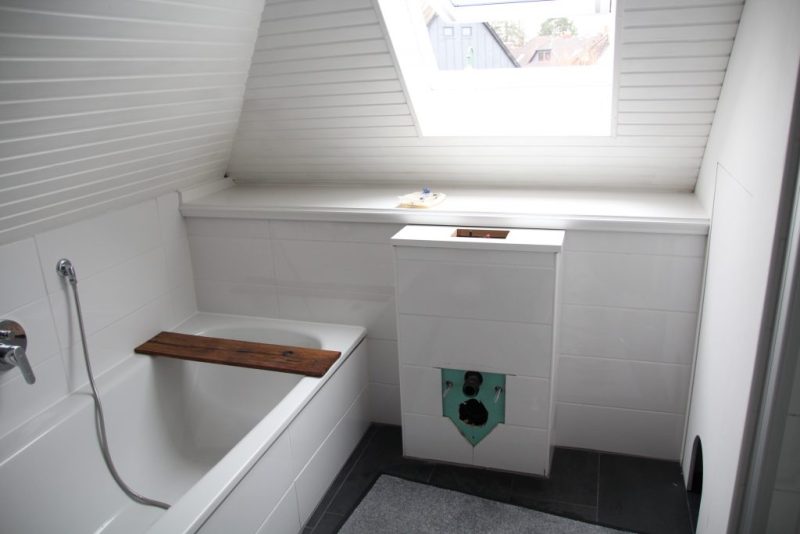

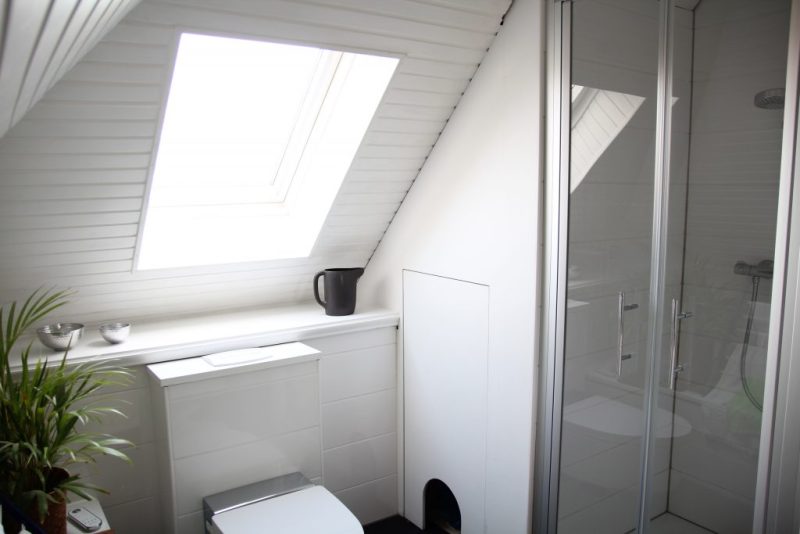

Geberit Aquaclean Mera Installation
Renovation work in our customer bathroom to nowinclude an Aquaclean Mera Comfort
Duravit SensoWash Slim
Duravit SensoWash Slim with Duravit Darling
Accessibility bathroom renovation
Duravit Sensowash Slim at its core
Villeroy & Boch ViClean U+ Set
Guest Bathroom Installation in London
Villeroy & Boch ViClean U+ Set
Master bathroom installation in London
TOTO Washlet Gl 2.0 + TOTO MH Close-Coupled
TOTO Washlet GL 2.0 combined with TOTO MH CW161Y Floor-standing back-to-wall rimless toilet.
TOTO Washlet Gl 2.0 + TOTO MH Close-Coupled
Private residence installation
Maro D'Italia Di600 Geberit Installation
Maro D'Italia DI600 Aqualet bidet seat Geberit installation
Geberit Aquaclean Mera Comfort Customer installation
Customer Installation in Greater London Area
Villeroy & Boch ViClean I-100 Set
Customer removed some tiles tiles to accommodate the new shower toilet
Villeroy & Boch ViClean I-100 Set
Plumber removed sufficient tiles to run the electric cable and water hose
Villeroy & Boch ViClean I-100 Shower Toilet
Complete installation
Villeroy & Boch ViClean I-100 Shower Toilet
Installation finally complete
Geberit Aquaclean Mera Installation in Shanklin
Geberit Aquaclean Mera Installation in Shanklin
Geberit Aquaclean Mera Installation in Shanklin
Geberit Aquaclean Mera Installation in Shanklin
Geberit Aquaclean Mera Installation in Shanklin
Geberit Aquaclean Mera Installation in Shanklin
Grohe Sensia Arena Installation #1
Customer Installation
Grohe Sensia Arena Installation #2
Customer installation
Grohe Sensia Arena Installation #3
Customer installation
TOTO Washlet GL 2.0 Customer Installation
Customer Installation
Maro D'Italia Di600 Aqualet
Customer picture of Maro D'Italia Di600 after installation
Maro D'Italia Di600 Customer Installation
TOTO NEOREST EW - Greater London
Customer installation photo
Grohe Manual Bidet Seat Customer Installation
Customer Installation
TOTO Washlet RW Installation
With the TECE Profil dry-wall fixture and TECE metal brushed steel finish flush plate
Grohe Bau Ceramic Rimless Close-Coupled Toilet + Maro D'Italia FP208
Grohe Bau ceramic close coupled one piece toilet 39429000 & 39437000 + Maro D'Italia FP208 warm water manual bidet seat dual temp
Maro D'Italia Di600 Aqualet Bidet Seat
Close up of the supplied water hose (braided stainless steel high pressure hose)
Maro D'italia Ch10 - Cold water bidet attachment Sailboat installation
Bidet attachment installed onto a marine Sailboat toilet
TOTO NEOREST AC - Customer photo
TOTO NEOREST AC customer installation
TOTO Washlet EK 2.0 Customer Installation
Customer installation of the TOTO Washlet Ek 2.0 hidden connections with TOTO MH CW162YH
Maro D'Italia Di600 Aqualet Bidet Seat
Customer installation - Geberit Omega Dry-wall fixture, Omega 20 top actuation flush plate
Maro D'Italia FP104
Maro FP104 customer installation
Maro D'Italia Di600 with Villeroy & Boch Architectura
Maro D'Italia Di600 with Villeroy & Boch Architectura Wall-Hung
Maro D'Italia Di600 with Villeroy & Boch Architectura
Maro D'Italia Di600 with Villeroy & Boch Architectura Wall-Hung #2
Vitra V-Care Comfort Customer Installation
Customer Installation Vitra V-Care
Vitra V-Care Comfort Customer Installation
V-Care 1.1
TOTO Washlet RW Auto Flush Customer Installation
Customer installation
TOTO Washlet RW Auto Flush Customer Installation
Customer installation
TOTO Washlet RW Auto Flush Customer Installation
Customer Installation
TOTO Washlet RW Auto Flush Customer Installation
Customer Installation
Maro D'Italia Di600 with Villeroy & Boch Architectura
Customer Installation
Maro D'Italia Di600 with Villeroy & Boch Architectura
Client installation
Maro D'Italia Di600 Aqualet with TOTO NC Floor-standing rimless toilet
Customer DIY installation
Maro D'Italia FP208 Customer Installation
Onto an existing close coupled toilet
TOTO Washlet RW Customer installation
Geberit Duofix Sigma 50 Black Glass Brushed stainless steel buttons
TOTO Washlet RW Customer installation
Combined with Geberit Duofix UP320, Geberit Sigma 20
TOTO Washlet SG 2.0 Customer Installation
Customer replaced the previous wall-hung pan for a Washlet SG 2.0
TOTO Washlet SG 2.0 Customer Installation
Customer replaced the previous wall-hung pan for a Washlet SG 2.0
TOTO NEOREST EW 2.0 Customer Installation
TOTO NEOREST EW with TOTO Glass White Flush plate and TECE Profil flushing system
Maro D'Italia Di600 Aqualet Washlet Customer Installation
Installed onto the existing wall-hung pan
Maro D'Italia Di600 Aqualet Washlet Customer Installation #2
Installed onto the existing wall-hung pan
TOTO Washlet Gl 2.0 Customer installation
TOTO Washlet GL 2.0 with Hidden connections and TOTO MH CW162YH for Washlets (wall-hung combination with TECE Profil dry-wall fixture)
TOTO Washlet RW London Customer installation
TOTO Washlet RW Product Code: TCF801CG with WC RP, wall-hung only for WASHLET™ Product Code: CW542EY
Ashley Hotel London - Maro D'Italia Di800
These sumptuous signature suites and the luxurious rooms throughout the hotel feature Maro D'Italia DI800 Piave shower Toilets in their elegant bathrooms.
Ashley Hotel London - Maro D'Italia Di800
These sumptuous signature suites and the luxurious rooms throughout the hotel feature Maro D'Italia DI800 Piave shower Toilets in their elegant bathrooms.
VOVO VB4100S Customer Installation
VOVO VB4100S customer installation onto existing corner close coupled toilet
TOTO WASHLET™ SG 2.0
Customer installation with the stainless steel undercover and TOTO Glass push plate
TOTO WASHLET™ SG 2.0
Customer installation with the stainless steel undercover and TOTO Glass push plate
TOTO WASHLET™ SG 2.0
Customer installation with the stainless steel undercover and TOTO Glass push plate
Geberit Aquaclean Sela wall-hung ensuite bathroom
Geberit Aquaclean Sela wall-hung ensuite bathroom customer installation
TOTO Washlet RW Customer Installation
TOTO Washlet RW Customer Installation
Maro D'Italia Di600 Aqualet & TOTO RP WC CW552Y
Maro D'Italia Di600 Aqualet & TOTO RP WC CW552Y Rimless with Geberit Duofix and Sigma20 Flush plate
Maro D'Italia Di600 Aqualet & TOTO RP WC CW552Y
Maro D'Italia Di600 Aqualet & TOTO RP WC CW552Y Rimless with Geberit Duofix and Sigma20 Flush plate
TOTO Washlet EK 2.0 customer installation
TOTO MH CW162YH hidden connections
Coway ba16 Customer Installation
Coway bas16 bidet seat
Coway ba16 Customer Installation
Coway ba16 Customer Installation
Customer installation Duravit SensoWash Slim
Customer installation Duravit SensoWash Slim
TOTO Washlet RW Customer installation
TOTO Washlet RW Customer installation
TOTO Washlet RW Customer installation
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Neorest AC With TECE Lux Glass White Plate and Touch sense
TOTO Washlet RW customer installation
TOTO Washlet RW customer installation
TOTO Washlet EK Customer installation
Customer installation
TOTO WASHLET GL Customer installation
TOTO WASHLET GL Customer installation
TOTO WASHLET RG LITE CUSTOMER INSTALLATION
TOTO WASHLET RG LITE CUSTOMER INSTALLATION
TOTO WASHLET RG LITE CUSTOMER INSTALLATION
TOTO WASHLET RG LITE CUSTOMER INSTALLATION
Maro D'Italia Di600 Aqualet bidet seat customer installation
Maro D'Italia Di600 Aqualet bidet seat customer installation
TOTO WASHLET RG With Hidden Connections + TOTO WC GP
Customer Installation
TOTO WASHLET RG With Hidden Connections + TOTO WC GP
Customer Installation
TOTO WASHLET RG With Hidden Connections + TOTO WC GP
Customer installation
TOTO WASHLET RG Customer installation
TOTO WASHLET RG Customer installation
TOTO Washlet RG Customer Installation
TOTO Washlet RG Customer Installation
TOTO Washlet RX Customer installation
TOTO Washlet RX Customer installation
TOTO Washlet RX Customer installation
TOTO Washlet RX Customer installation
TOTO Washlet RX Customer installation
TOTO Washlet RX Customer installation
TOTO Washlet RW Customer installation
TOTO Washlet RW Customer installation
Maro D'Italia FP204 Hot & Cold Manual Bidet seat customer installation
Maro D'Italia FP204 Hot & Cold Manual Bidet seat customer installation
TOTO MH CW162Y and Maro D'Italia Di600 Aqualet bidet seat Customer Installation
TOTO MH CW162Y and Maro D'Italia Di600 Aqualet bidet seat Customer Installation
Maro D'Italia Di800 Aqualet Piave Customer Installation
Maro D'Italia Di800 Aqualet Piave Customer Installation
Maro D'Italia Di800 Aqualet Piave Customer Installation
Maro D'Italia Di800 Aqualet Piave Customer Installation
Maro D'Italia CH21 Hot&Cold BLACK Bidet Attachment Customer installation
Maro D'Italia CH21 Hot&Cold BLACK Bidet Attachment Customer installation
TOTO Washlet RG lite and TOTO MH Close coupled Customer Installation
